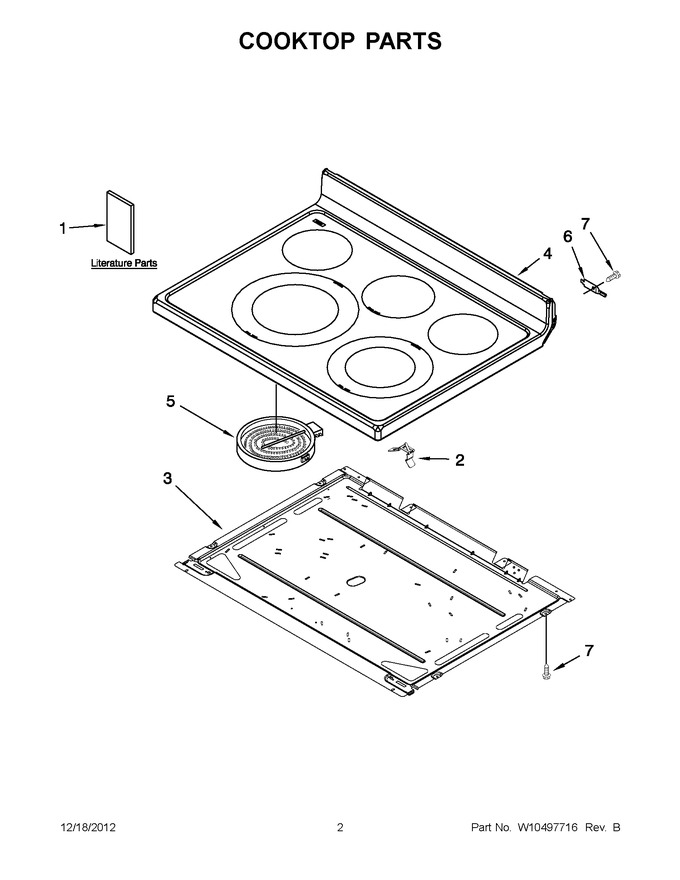

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10434987 | Tech Sheet (english) |
|
- | |||||
| 1 | W10434988 | Tech Sheet (french) |
|
- | |||||
| 1 | W10394386 | Guide, Use & Care |
|
- | |||||
| 1 | 9762761 | Tips, Safer Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 4 | W10472035 | Cooktop (black) (Replaces: W10380665) |
|
Immediately | $ 697.64 | ||||
| 4 | W10472036 | Cooktop (white) (Replaces: W10380664) |
|
Immediately | $ 683.94 | ||||
| 5 | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5 | W11047668 | Element, Warm Zone (Replaces: W10388271) |
|
$ 132.95 | |||||
| 5 | WPW10189281 | Element (3000w) (left Front) (Replaces: W10189281) |
|
Immediately | $ 377.54 | ||||
| 5 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
