01 - Cooktop Parts

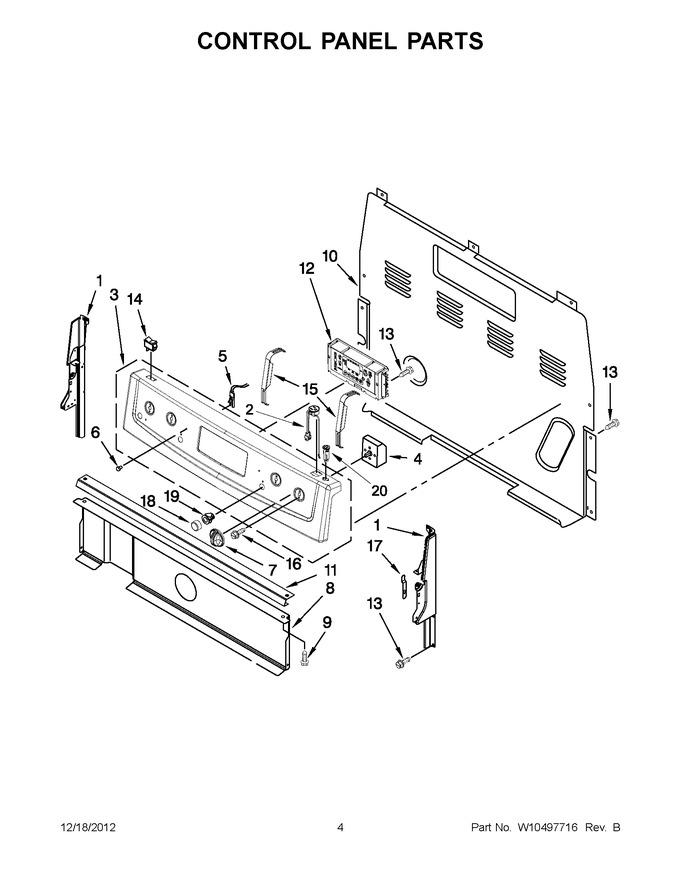

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 2 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 3 | W11234448 | Panel, Control (white) (Replaces: W10370181) |
|
$ 475.63 | |||||
| 3 | W10430820 | Panel, Control (stainless Steel) |
|
$ 133.96 | |||||
| 3 | W11234440 | Panel, Control (black) (Replaces: W10370180) |
|
$ 475.63 | |||||
| 4 | 5500-287 | Switch, Infinite (left Rear & Right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front & Right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10490037 | Knob, Infinite (white) (Replaces: W10490037) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10490038 | Knob, Infinite (black) (Replaces: W10490038) |
|
$ 21.54 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | WPW10502614 | Control, Range (white) (Replaces: W10348632) |
|
$ 384.05 | |||||
| 12 | WPW10502613 | Control, Range (stainless) (Replaces: W10424888) |
|
$ 526.76 | |||||
| 12 | WPW10502615 | Control, Range (black) (Replaces: W10348631) |
|
$ 448.55 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 93.95 | |||||
| 14 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 15 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 19 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 19 | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 20 | WP9757602 | Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 20 | WP9757601 | Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 21 | WP9757601 | Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 21 | WP9757602 | Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 22 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 22 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 |
