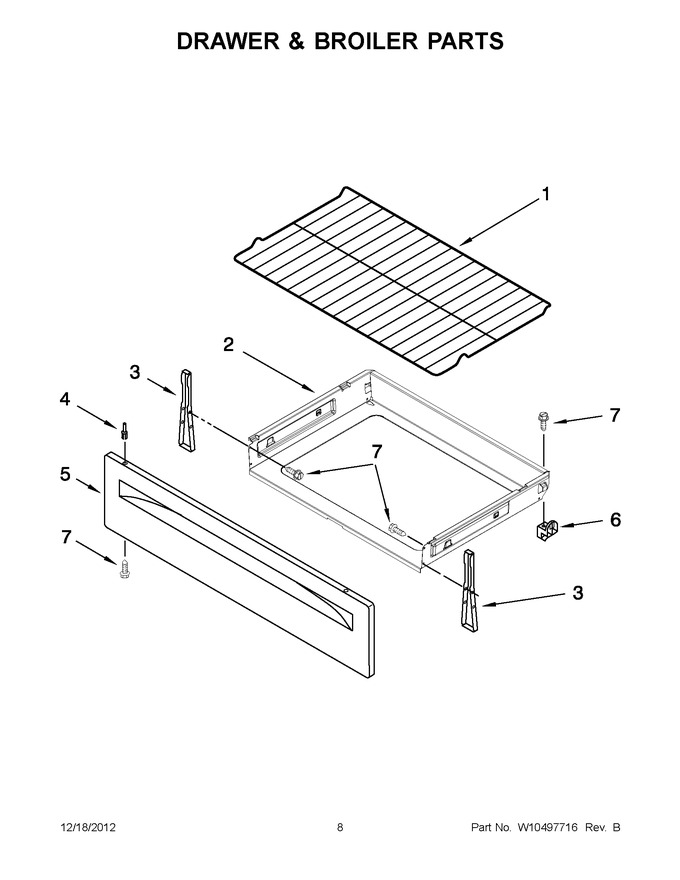

04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (standard Flat) (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 138.15 | ||||
| 3 | WPW10462912 | Bracket, Drawer Mounting (Replaces: W10462912) |
|
Immediately | $ 133.76 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 4 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 5 | W11804926 | Drawer Front (stainless) (Replaces: W10330070) |
|
Immediately | $ 186.57 | ||||
| 5 | W11219377 | Drawer Front (white) (Replaces: 8053339) |
|
$ 212.57 | |||||
| 5 | W11230488 | Drawer Front (black) (Replaces: 8053341) |
|
$ 212.44 | |||||
| 6 | W10763667 | Glide, Rear Drawer (Replaces: W10317899) |
|
Immediately | $ 107.68 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
