View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

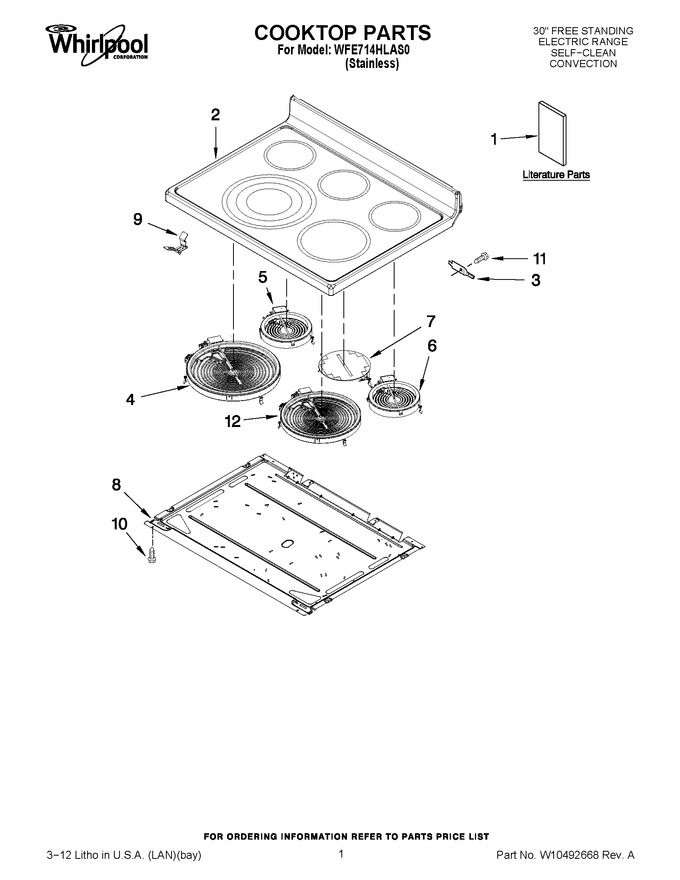

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10400064 | Guide, Quick Start |
|
- | |||||
| 1 | W10392961 | Tech Sheet |
|
- | |||||
| 1 | W10403811 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Brochure, Safe Tip |
|
- | |||||
| 1 | W10392932 | Use & Care Guide |
|
- | |||||
| 2 | W10651915 | Cooktop (Replaces: W10380667) |
|
$ 684.99 | |||||
| 3 | WP3195060 | Pin, Hinge (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 4 | WPW10297138 | Element (lf) 3000/2200/1100w (Replaces: W10297138) |
|
$ 372.16 | |||||
| 5 | W11171119 | Element (rr) 1200w (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 6 | WPW10342780 | Element (lr) 1300w (Replaces: W10342780) |
|
Immediately | $ 168.46 | ||||
| 7 | W11047668 | Element (center) Warm Zone (Replaces: W10388247) |
|
$ 132.95 | |||||
| 8 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 11 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 12 | WPW10251108 | Element (rf) 3200w (Replaces: W10251108) |
|
Immediately | $ 341.96 |
