Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11280103 Panel, Drawer   (Replaces: W10330054) In-Stock Immediately $ 222.13

2 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 7.55

3 W10813962 Drawer, Storage   (Replaces: W10300032) In-Stock Immediately $ 138.15

4 W10763667 Glide, Drawer   (Replaces: W10317899) In-Stock Immediately $ 107.68

5 WPW10318027 Bracket, Drawer   (Replaces: W10318027) Special Order $ 120.16

6 W10763667 Glide, Front   (Replaces: W10317898) In-Stock Immediately $ 107.68

7 W11520287 Rack, Oven   (Replaces: W10179196) In-Stock Immediately $ 46.84

8 W10205526 Rack, Oven (partial) Special Order $ 130.85

9 W10186592 Rack, Oven (insert) In-Stock Immediately $ 107.44


    View Diagram in Separate Window     Print Icon   Print Part List

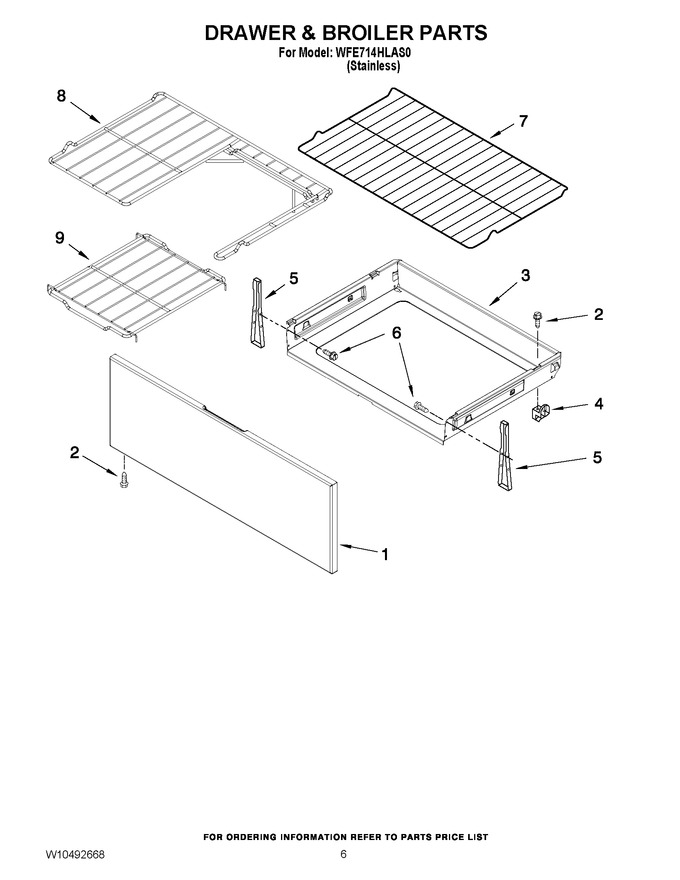

Diagram for WFE714HLAS0
