01 - Cooktop Parts

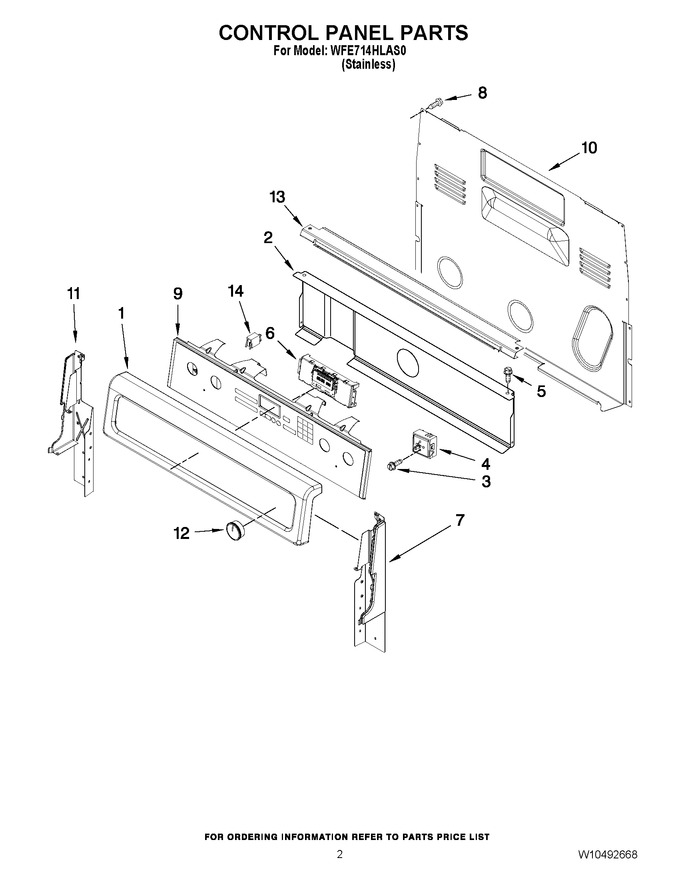

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10318550 | Panel, Backguard (Replaces: W10318550) |
|
$ 273.23 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 3 | WP3400882 | Screw, Switch (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10411934 | Switch, Infinte (lr & Rf) (Replaces: W10411934) |
|
Immediately | $ 109.83 | ||||
| 4 | 5500-287 | Switch, Infinte (rf) (Replaces: 3148951) |
|
Immediately | $ 54.48 | ||||
| 4 | WPW10391743 | Switch, Infinte (triple (lf)) (Replaces: W10391743) |
|
Immediately | $ 124.71 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10340304 | Control (mrc) (Replaces: W10340304) |
|
Immediately | $ 465.02 | ||||
| 7 | W11219664 | End Cap, Left (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 9 | W10347931 | Overlay, Active |
|
- | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11219665 | End Cap, Right (Replaces: W10184438) |
|
$ 45.17 | |||||
| 12 | WPW10430806 | Knob (Replaces: W10430806) |
|
Immediately | $ 26.11 | ||||
| 13 | W10525121 | Bracket, Console Mounting (Replaces: W10182322) |
|
$ 98.85 | |||||
| 14 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 101.96 |
