01 - Cooktop Parts

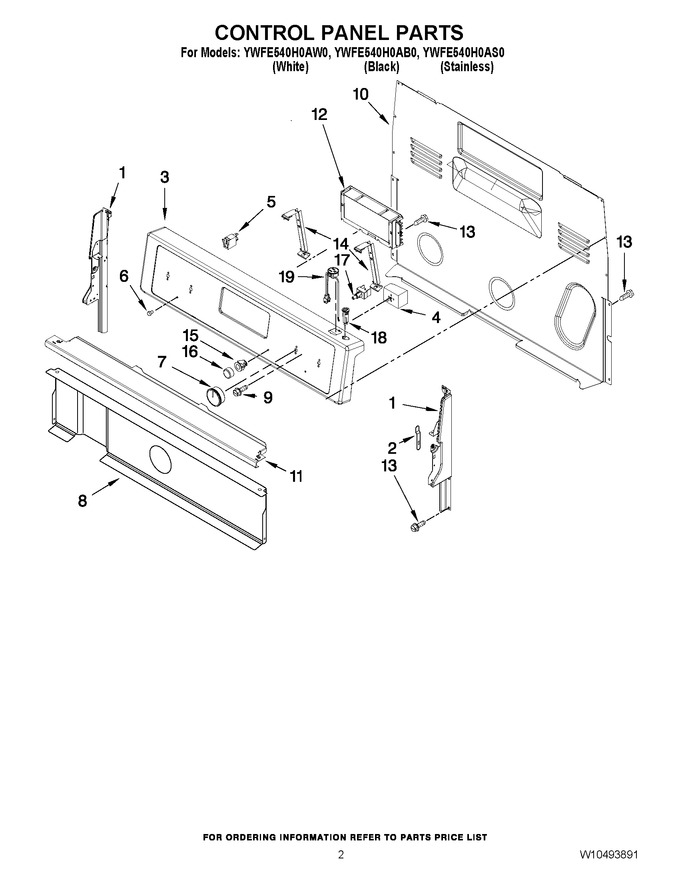

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 40.43 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 57.93 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 146.50 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 40.44 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.95 | |||||
| 3 | W10370106 | Panel, Backguard (white) |
|
$ 141.65 | |||||
| 3 | W10370104 | Panel, Backguard (black) |
|
$ 92.06 | |||||
| 3 | W10339407 | Panel, Backguard (stainless) |
|
$ 393.86 | |||||
| 4 | 5500-287 | Switch, Infinite (left - Right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10434452 | Switch, Infinite (left & Right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10430806 | Knob (stainless) (Replaces: W10430806) |
|
Immediately | $ 24.87 | ||||
| 7 | WPW10490036 | Knob (black) (Replaces: W10490036) |
|
$ 20.08 | |||||
| 7 | W10490035 | Knob (white) |
|
$ 21.22 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 341.73 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.19 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 208.61 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 94.14 | |||||
| 12 | WPW10586736 | Control, Range (lcc195) (black) (Replaces: W10348707) |
|
$ 454.35 | |||||
| 12 | WPW10586737 | Control, Range (lcc195) (stainless) (Replaces: W10349740) |
|
$ 499.78 | |||||
| 12 | WPW10586735 | Control, Range (lcc195) (white) (Replaces: W10348708) |
|
$ 454.35 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | W11230932 | Mounting, Bracket (Replaces: W10324410) |
|
Immediately | $ 80.77 | ||||
| 15 | W10315960 | Bezel, Keep Warm (gray) |
|
$ 63.42 | |||||
| 15 | W10217758 | Bezel, Keep Warm (black) |
|
$ 27.29 | |||||
| 15 | W10217760 | Bezel, Keep Warm (white) |
|
$ 24.68 | |||||
| 16 | W10918209 | Button, Keep Warm(gray) (Replaces: W10315961) |
|
$ 19.25 | |||||
| 16 | 9757492 | Button, Keep Warm (white) |
|
$ 91.44 | |||||
| 16 | 9758491 | Button, Keep Warm (black) |
|
$ 18.80 | |||||
| 17 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 170.39 | |||||
| 18 | WP9757601 | Breaker, Circuit (15 Amp) (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 18 | WP9757602 | Breaker, Circuit (15 Amp) (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 19 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 19 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 |
