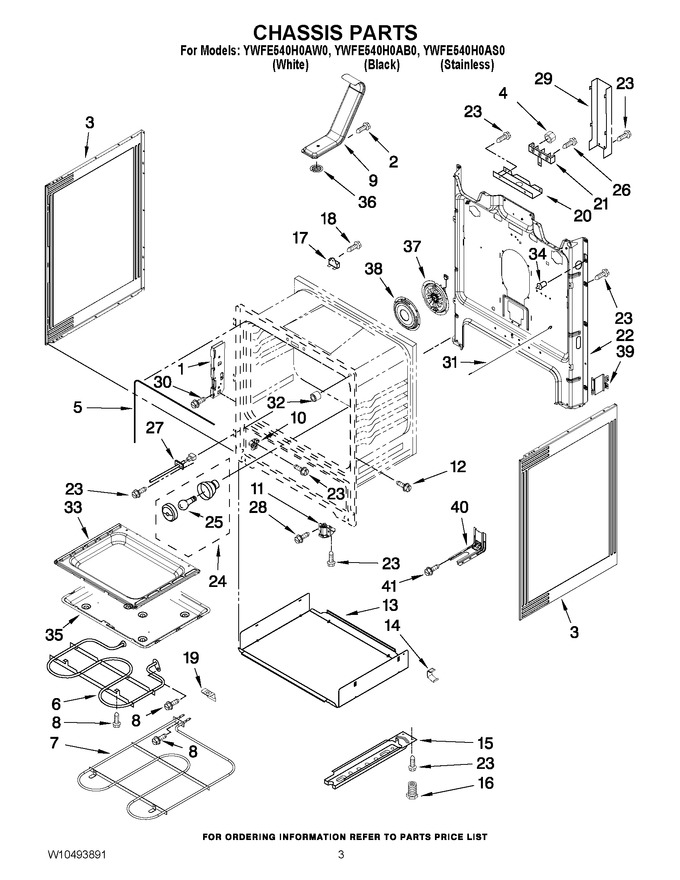

03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
2	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.02
3	W11730303		Panel, Side (black)   (Replaces: W10322770)			Immediately	$ 164.83
3	WPW10575396		Panel, Side (white)   (Replaces: W10322769)				$ 148.71
4	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 7.19
5	W11562931		Seal, Oven Door   (Replaces: W10162385)			Immediately	$ 87.76
6	WPW10535127		Element, Broil   (Replaces: W10211455)				$ 213.75
7	W10779716		Element, Bake   (Replaces: W10289097)			Immediately	$ 61.45
8	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.02
9	WPW10134285		Flue   (Replaces: W10134285)			Immediately	$ 250.48
10	W10763667		Glide, Drawer Frnt   (Replaces: W10317898)			Immediately	$ 107.68
11	WPW10341186		Foot, Front   (Replaces: W10341186)			Immediately	$ 32.59
12	WPW10067840		Screw   (Replaces: W10067840)				$ 7.76
13	W10726740		Shield, Heat   (Replaces: W10289099)				$ 138.12
14	W10137382		Clip, Panel			Immediately	$ 46.11
15	W11818353		Rail, Base (left Hand)   (Replaces: W10390007)				$ 59.68
15	W11818353		Rail, Base (right Hand)   (Replaces: W10390008)				$ 59.68
16	WPW10058460		Foot, Rear   (Replaces: W10058460)			Immediately	$ 7.85
17	WP3196548		Thermal, Fuse   (Replaces: 3196548)			Immediately	$ 47.71
18	3196172		Screw			Immediately	$ 12.83
19	W10035900		Support, Oven				$ 13.68
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 30.13
22	W10273169		Back, Main		Appelez-nous	-
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
24	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 87.01
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
26	WP3400016		Screw   (Replaces: 3400016)				$ 7.95
27	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 106.83
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
29	WPW10326122		Cover, Terminal Box   (Replaces: W10326122)				$ 132.95
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
31	W11370463		Rod, Door Switch (rear Mount)   (Replaces: W10273192)			Immediately	$ 63.69
32	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 53.39
33	W10789865		Bottom, Oven   (Replaces: W10289079)				$ 221.22
34	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 144.44
35	W11379357		Pan, Bake   (Replaces: W10346147)			Immediately	$ 78.91
36	9761301		Screen - Catalyst				$ 140.86
37	WPW10389555		Fan, Convection   (Replaces: W10389555)				$ 284.05
38	WPW10346154		Cover, Convection   (Replaces: W10346154)			Immediately	$ 73.97
39	W10273002		Bracket, Support				$ 72.70
40	W11447673		Bracket, Anti Tip   (Replaces: W10306542)				$ 31.82
41	WP7101P485-60		Screw, Anti Tip   (Replaces: 7101P485-60)				$ 29.26
NI	WPW10194393		Insulation, Wrap   (Replaces: W10194393)				$ 123.00
NI	WPW10225524		Insulation, Back   (Replaces: W10225524)				$ 109.22
NI	WPW10225523		Insulation, Bottom   (Replaces: W10225523)				$ 114.52
NI	4820F015-59		Strap, Insulation				$ 9.32
