SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts

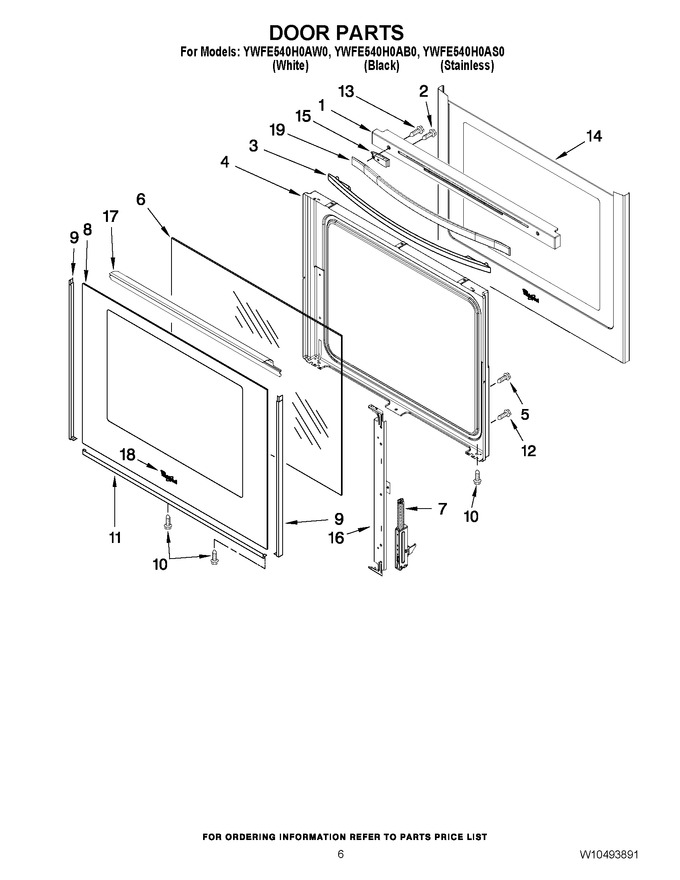

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10294855		Trim, Top (black)			Immediately	$ 119.88
1	W10335333		Trim, Top (stainless)				$ 166.64
1	WPW10335331		Trim, Top (white)   (Replaces: W10335331)			Immediately	$ 125.35
2	WPW10317886		Screw   (Replaces: W10465151)			Immediately	$ 7.76
3	W10300489		Handle, Door (white)			Immediately	$ 233.22
3	W10300490		Handle, Door (black)			Immediately	$ 156.75
4	WPW10297318		Liner-door   (Replaces: W10297318)			Immediately	$ 315.72
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WPW10300487		Window, Inner   (Replaces: W10300487)				$ 252.42
7	WPW10440013		Hinge, Door   (Replaces: W10440013)			Immediately	$ 63.80
8	WPW10333987		Glass, Outer (white)   (Replaces: W10333987)			Immediately	$ 307.01
8	WPW10333988		Glass, Outer (black)   (Replaces: W10333988)				$ 354.40
9	W10334004		Trim, Side (black)				$ 222.63
9	W10334003		Trim, Side (white)			Immediately	$ 84.58
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
11	WPW10333990		Trim, Lower (white)   (Replaces: W10333990)			Immediately	$ 51.90
11	W10334031		Trim, Lower (black)				$ 74.15
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
13	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 7.76
14	W10289144		Door, Outer (stainless Only, Includes Badge)				$ 237.78
15	WPW10254688		Standoff, Handle (stainless Only)   (Replaces: W10254688)				$ 73.79
16	W11116956		Rail, Door   (Replaces: W10294851)				$ 127.38
17	W10294853		Bracket, Glass			Immediately	$ 225.75
18	W11178521		Badge (grey)   (Replaces: W10434972)			Immediately	$ 63.13
18	W11178521		Badge (white)   (Replaces: W10434971)			Immediately	$ 63.13
19	WPW10618239		Handle, Door (stainless Only)   (Replaces: W10254687)			Immediately	$ 175.54

    View Diagram in Separate Window       Print Part List
