View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

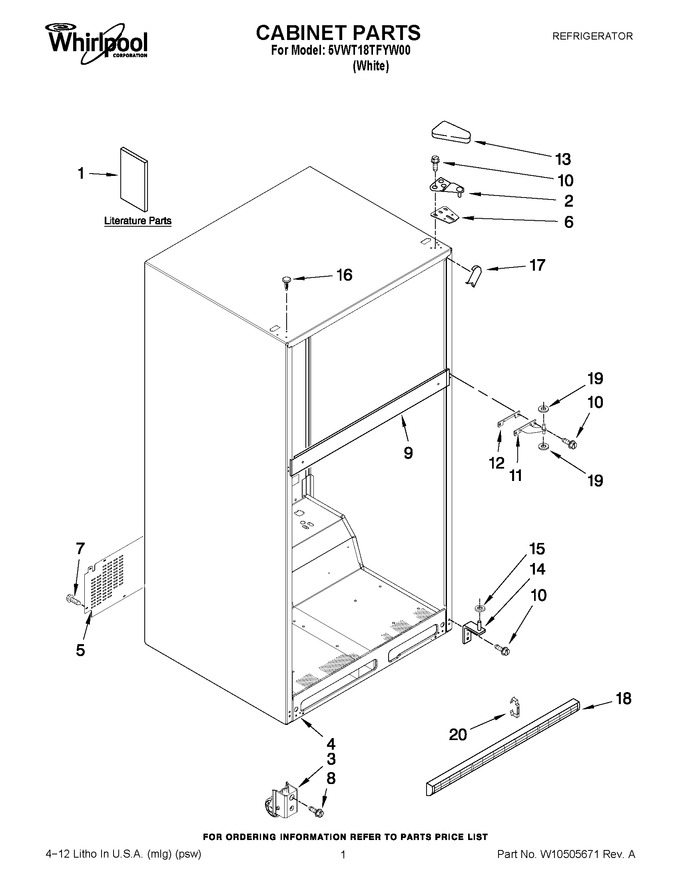

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469939 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10461975 | Use & Care Guide |
|
- | |||||
| 1 | W10470600 | Wiring Sheet, Arabian |
|
- | |||||
| 2 | WP2261963 | Hinge Assy, Top (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | W10849386 | Roller Assy, Front (Replaces: W10327136) |
|
$ 114.75 | |||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | W10425027 | Cover, Unit |
|
- | |||||
| 6 | W11169703 | Shim Hinge, Top (Replaces: 2221885) |
|
$ 15.79 | |||||
| 7 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 8 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 9 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 13 | WP2213360 | Cover, Hinge (Replaces: 2213360) |
|
$ 20.19 | |||||
| 14 | WP2254473 | Hinge Assy, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 15 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 16 | WP2151652 | Hole Plug (Replaces: 2201012) |
|
$ 22.87 | |||||
| 17 | WPW10283959 | Corner Filler (Replaces: W10283959) |
|
$ 8.21 | |||||
| 18 | WP2254386 | Grille Assembly (includes Item 20) (Replaces: 2254386) |
|
$ 99.26 | |||||
| 19 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 20 | 2254385 | Clip, Grille (right) |
|
$ 88.87 | |||||
| 20 | 2189356 | Clip, Grille (left) |
|
$ 5.70 |
