SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts

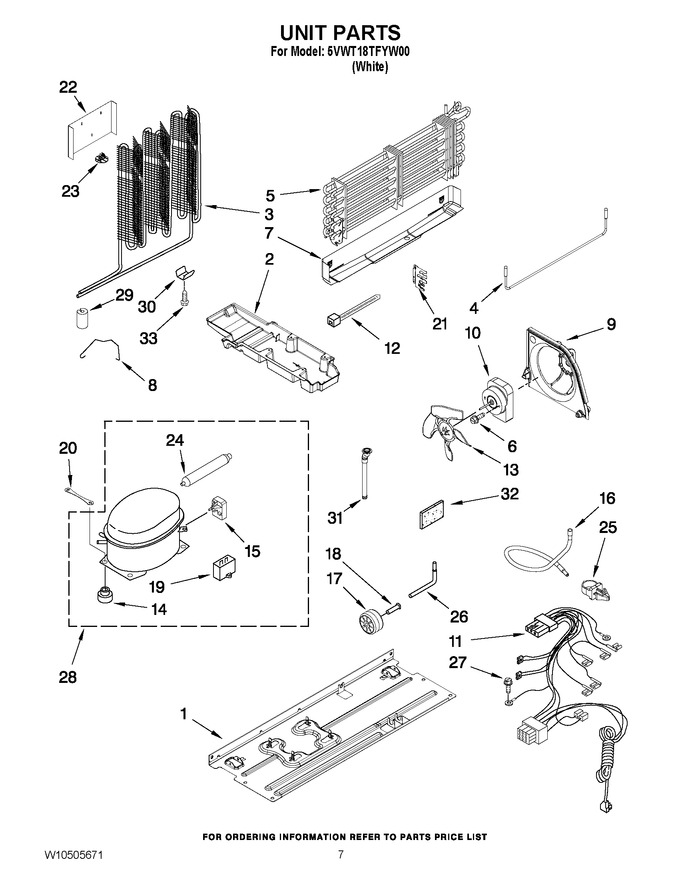

04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300116		Plate, Unit Mounting				$ 164.30
2	W10890667		Evaporator Tray   (Replaces: W10466213)				$ 151.95
3	WPW10342567		Condenser   (Replaces: W10342567)				$ 278.20
4	W10405108		Heater, Defrost		Appelez-nous	-
5	WPW10314205		Evaporator Assy   (Replaces: W10314205)				$ 361.39
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	WPW10314195		Heat Shield   (Replaces: W10314195)				$ 101.34
8	2302129		Bale Strap		Appelez-nous	-
9	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 87.99
10	WP2321271		Motor, Condenser   (Replaces: 2321271)				$ 325.47
11	W10402413		Wire Assy, Unit		Appelez-nous	-
12	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
13	WPW10139483		Fan Blade   (Replaces: W10139483)				$ 99.82
14	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
15	WP2312007		Start Device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2312007)				$ 189.69
16	W10466682		Tube, Suction				$ 44.33
17	WPW10475495		Roller, Rear   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	2321245		Capacitor		Appelez-nous	-
20	W10236396		Strap, Condenser			Immediately	$ 20.81
21	W10314197		Bracket, Evap				$ 23.44
22	W10349514		Cover, Condenser Bottom				$ 82.40
23	W10296661		Clip, Cover				$ 17.78
24	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
25	2219077		Harness Clip				$ 64.24
26	2154109		Tube, Process				$ 76.26
27	WP489128		Screw   (Replaces: 488500)				$ 11.40
28	W10183407		Compressor (includes Items 14, 15, 19 & 24) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10120455)				$ 435.61
29	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
30	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
31	W11190084		Drain Valve   (Replaces: W10316650)			Immediately	$ 65.56
32	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
33	W11544659		Screw   (Replaces: 8281232)				$ 14.35
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (4.00 Ozs.(r134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
