View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

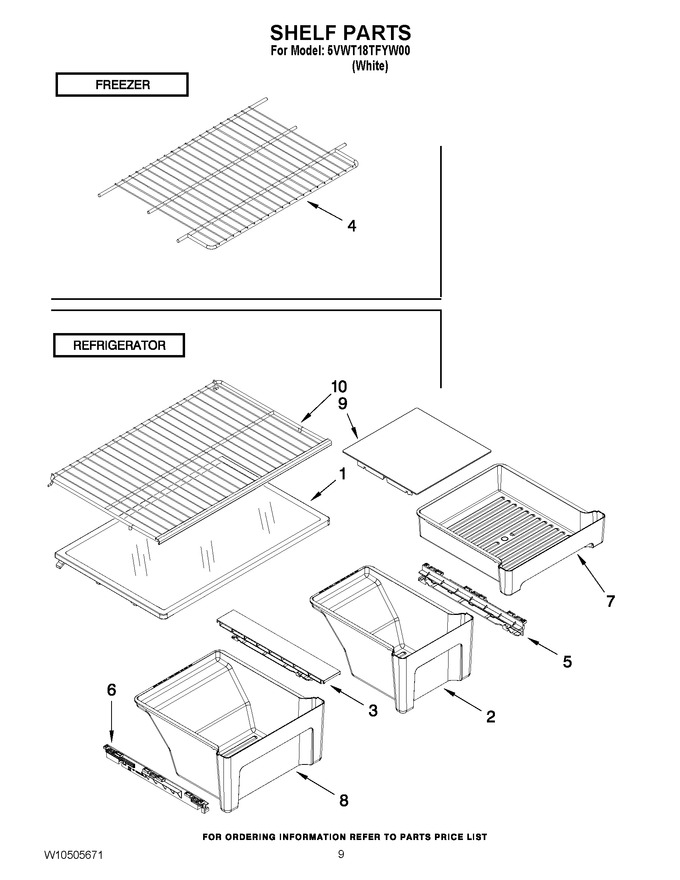

05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486290 | Glass Shelf 30`` (Replaces: W10486290) |
|
$ 263.28 | |||||
| 2 | W10373941 | Crisper Pan 8`` |
|
$ 64.07 | |||||
| 3 | WPW10468557 | Track Rail, Center (Replaces: W10404446) |
|
Immediately | $ 30.75 | ||||
| 4 | W10477088 | Wire Shelf, Fc (Replaces: W10384383) |
|
$ 180.29 | |||||
| 5 | WPW10468556 | Track Rail, Right (Replaces: W10404450) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10468555 | Track Rail, Left (Replaces: W10404449) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10310944 | Meat Pan 16`` (Replaces: W10310944) |
|
$ 148.80 | |||||
| 8 | W10373936 | Crisper Pan 16`` |
|
$ 68.71 | |||||
| 9 | WPW10404386 | Cover, Drop In (Replaces: W10404386) |
|
$ 122.81 | |||||
| 10 | W10310934 | Wire Shelf, Rc |
|
$ 120.63 |
