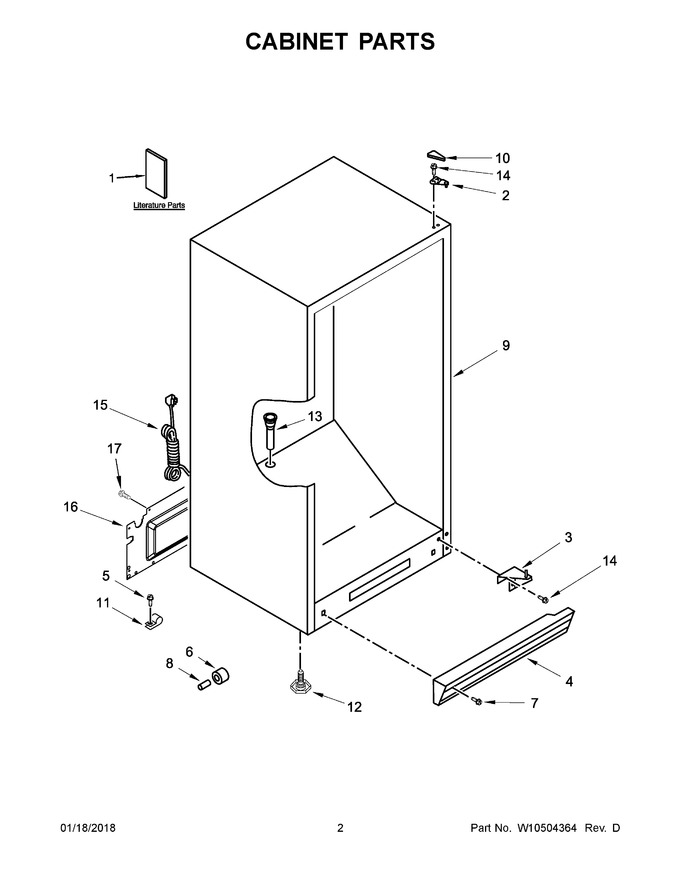

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326802		Owners Manual		Appelez-nous	-
2	2-81016-105		Hinge, Top (white)				$ 43.24
3	4-82693-013		Bottom Hinge (white)				$ 79.20
4	WP4-60461-005		Grille (white)   (Replaces: 4-60461-005)				$ 117.48
5	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 8.33
6	3-60315-001		Roller, Front				$ 32.89
7	WP489478		Screw   (Replaces: 3-24004-107)				$ 8.18
8	1-60316-001		Axle				$ 13.99
9	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
10	3-80838-003		Cover, Hinge (white)				$ 4.50
11	488946		Clamp   (Replaces: 3-25095-021)				$ 21.47
12	WP3-82710-001		Leg, Leveler   (Replaces: 3-82710-001)			Immediately	$ 20.32
13	W10558247		Grommet, Drain		Appelez-nous	-
14	WP8204624		Screw   (Replaces: 1-80271-103)				$ 17.48
15	4-82399-001		Cord, Power				$ 52.24
16	4-82720-001		Cover, Unit		Appelez-nous	-
17	W11233072		Screw   (Replaces: 3-80732-014)			Immediately	$ 14.72
10A	3-80838-007		Cover, Hinge (silver)		Appelez-nous	-
1A	W10326815		Energy Guide		Appelez-nous	-
2A	W10260541		Hinge, Top (silver)   (Replaces: 2-81016-107)				$ 51.02
3A	4-82693-011		Bottom Hinge (silver)				$ 78.68
4A	4-60461-010		Grille (silver)				$ 43.92
