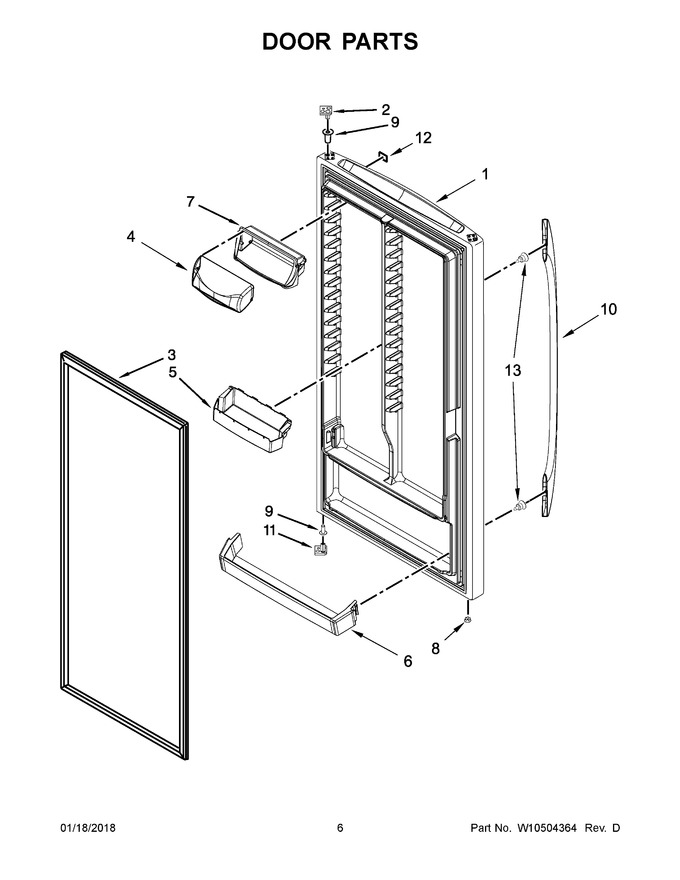

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296809		Assembly, Door (includes Interior Liner) (white)   (Replaces: 4-82827-058)				$ 783.33
2	2-81124-001		Stop, Door (top) (natural)				$ 31.15
3	WP4-65151-002		Gasket (white)   (Replaces: 4-65151-002)				$ 377.13
4	4-65429-001		Door, Compartment				$ 29.60
5	4-65454-001		Bin, Door				$ 36.79
6	4-65449-001		Rail, Door (lower)				$ 95.53
7	4-65430-001		Housing, Dairy Compartment				$ 65.00
8	3-24898-007		Plug, Vent				$ 11.34
9	3-60199-001		Bushing, Hinge (white)		Appelez-nous	-
10	3-82596-002		Handle (white)				$ 265.43
11	2-81125-001		Stop, Door (bottom) (natural)		Appelez-nous	-
12	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 63.13
13	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
10A	3-82596-003		Handle (brushed Aluminum)				$ 314.03
12A	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 63.13
1A	4-82827-059		Assembly, Door (includes Interior Liner) (stainless Steel)		Appelez-nous	-
2A	2-81124-004		Stop, Door (top) (silver)				$ 53.64
3A	4-65151-010		Gasket (silver)				$ 196.81
9A	3-60199-004		Bushing, Hinge (silver)				$ 11.91
