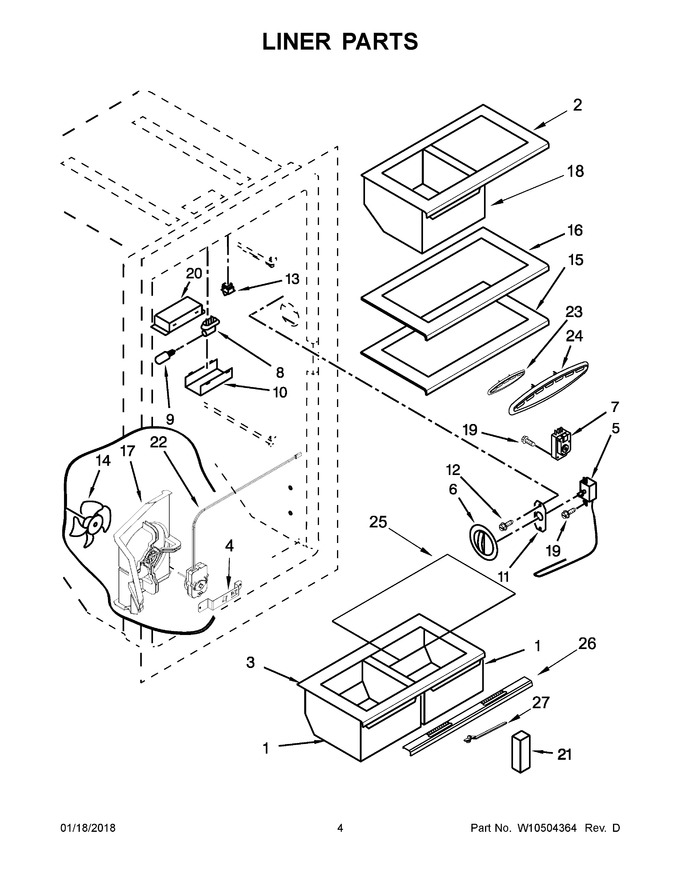

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-60650-002		Pan, Crisper				$ 65.97
2	4-60208-001		Shelf, Meat Keeper (upper)		Appelez-nous	-
3	4-60200-002		Shelf, Crisper (lower)		Appelez-nous	-
4	3-82685-001		Bracket, Motor				$ 60.00
5	WPW10424991		Thermostat   (Replaces: W10424991)			Immediately	$ 158.52
6	4-81294-003		Knob, Thermostat		Appelez-nous	-
7	WP3-81329		Timer, Defrost   (Replaces: 3-81329)			Immediately	$ 199.14
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
9	40A15		Bulb, Light   (Replaces: 1-34291-002)			Immediately	$ 1.98
10	3-60197-001		Shield, Light				$ 40.60
11	1-81154		Plate, Thermostat				$ 15.00
12	WPW10068250		Screw   (Replaces: 1-80283-110)				$ 4.27
13	W11384469		Switch, Light   (Replaces: 2-32164-001)			Immediately	$ 39.09
14	3-82692-001		Blade, Condenser Fan				$ 97.95
15	4-60209-001		Shelf, Middle		Appelez-nous	-
16	4-60207-001		Shelf, Top		Appelez-nous	-
17	4-82690-001		Shroud, Condenser Motor				$ 94.85
18	WP4-60040-004		Pan, Upper Crisper   (Replaces: 4-60040-004)				$ 170.86
19	681390		Screw   (Replaces: 1-80257-102)				$ 13.71
20	4-60185-002		Housing, Light Socket				$ 39.54
21	3-34715-004		Rail, Door Shelf				$ 116.03
22	4-82691-001		Motor, Condenser				$ 125.08
23	4-82573-002		Diffuser, Short Air		Appelez-nous	-
24	4-82556-002		Diffuser, Long Air		Appelez-nous	-
25	3-60198-003		Glass, Shelf		Appelez-nous	-
26	W10380027		Trim, Cover Crisper		Appelez-nous	-
27	3-60212-001		Damper, Humidity Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
