SELECT A DIAGRAM

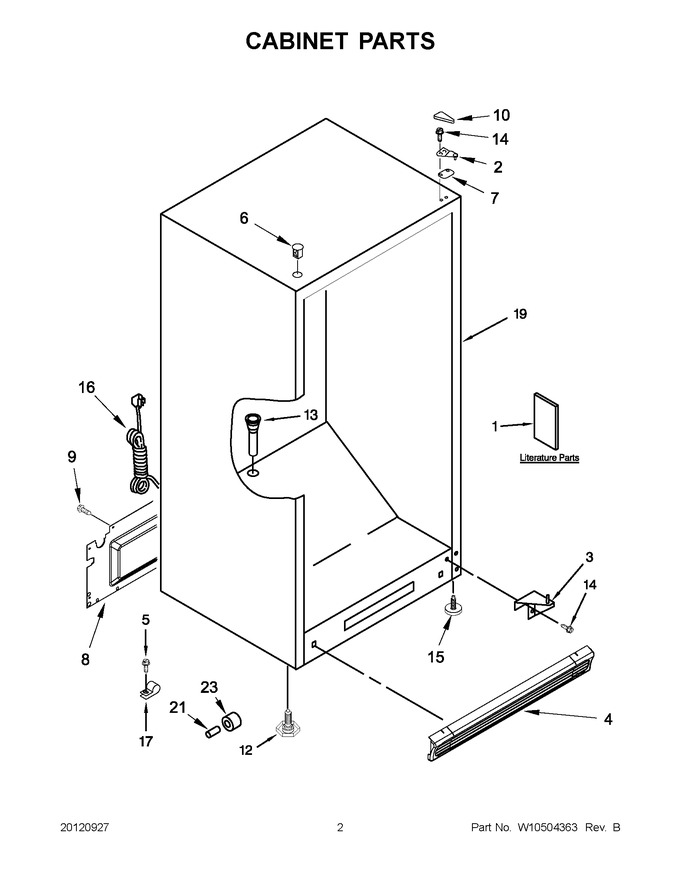

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10444504		Diagram, Wiring		Appelez-nous	-
1	W10443589		Owners Manual		Appelez-nous	-
2	2-81016-105		Top Hinge (white)				$ 43.24
2	W10260541		Top Hinge (silver)   (Replaces: 2-81016-107)				$ 51.02
3	W10472019		Bottom Hinge (silver)		Appelez-nous	-
3	W10458260		Bottom Hinge (white)		Appelez-nous	-
4	4-60461-010		Grille (silver)				$ 43.92
4	WP4-60461-005		Grille (white)   (Replaces: 4-60461-005)				$ 117.48
5	WP489478		Screw   (Replaces: 3-80675-105)				$ 8.18
6	3-23995-014		Plastic, Grommet		Appelez-nous	-
7	4390489		Shim   (Replaces: 2-81312)				$ 7.30
8	4-82720-001		Cover, Unit		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3-80732-014)			Immediately	$ 14.72
10	3-80838-003		Cover, Hinge (white)				$ 4.50
10	3-80838-007		Cover, Hinge (silver)		Appelez-nous	-
12	WP3-82710-001		Leg, Leveling (black)   (Replaces: 3-82710-001)			Immediately	$ 20.32
13	3-60696-001		Grommet, Drain				$ 32.33
14	1-80271-106		Screw				$ 12.03
15	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
16	W10123575		Cord, Power		Appelez-nous	-
17	3-25095-011		Clamp, Tube		Appelez-nous	-
19	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
21	1-60316-001		Axle				$ 13.99
23	3-60315-001		Roller, Front				$ 32.89
