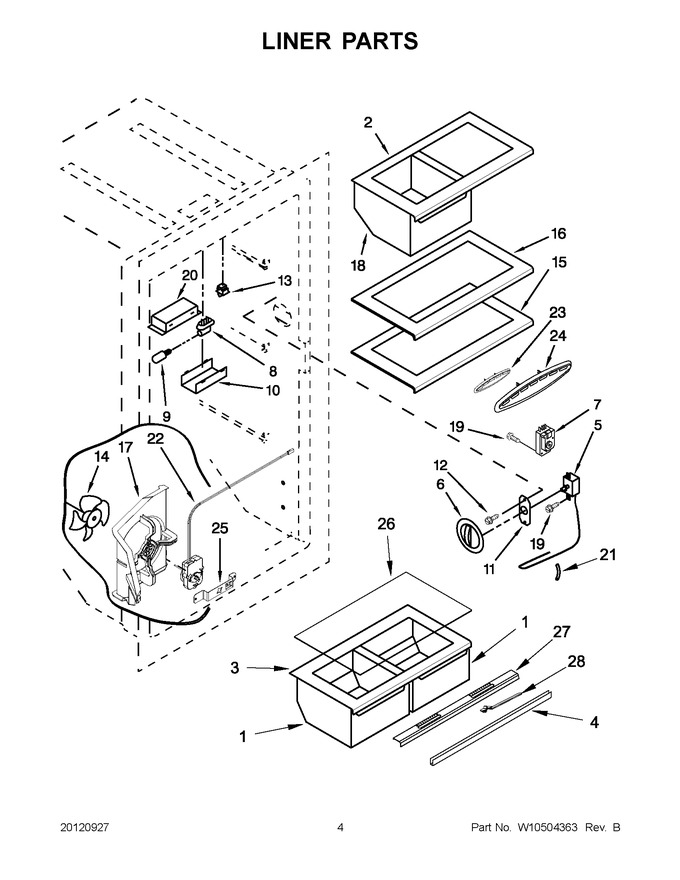

02 - Liner Parts


03 - Door Parts


04 - Unit Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-60650-002		Pan, Crisper				$ 65.97
2	4-60208-001		Shelf, Upper Meat Keeper		Appelez-nous	-
3	4-60200-002		Shelf, Crisper (lower)		Appelez-nous	-
4	2-33516-003		Channel, Crisper Cover Support				$ 129.91
5	WPW10424991		Thermostat   (Replaces: W10424991)			Immediately	$ 146.10
6	4-81294-003		Knob, Thermostat		Appelez-nous	-
7	WPW10532541		Timer, Defrost   (Replaces: 3-81329-001)				$ 214.36
8	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
9	WP67002552		Bulb, Light   (Replaces: 851682)			Immediately	$ 12.34
10	3-60197-001		Shield, Light				$ 40.60
11	1-81154		Plate, Thermostat				$ 15.00
12	W11233072		Screw   (Replaces: 3-80732-014)			Immediately	$ 14.72
13	W11384469		Switch, Light   (Replaces: 2-32164-001)			Immediately	$ 39.09
14	3-82692-001		Blade, Condenser Fan				$ 97.95
15	4-60209-001		Shelf, Middle		Appelez-nous	-
16	4-60207-001		Shelf, Top		Appelez-nous	-
17	4-82690-001		Shroud, Condenser Motor				$ 94.85
18	WP4-60040-004		Pan, Upper Crisper   (Replaces: 4-60040-004)				$ 170.86
19	1-80270-104		Screw		Appelez-nous	-
20	4-60185-002		Housing, Light Socket				$ 39.54
21	W10389334		Tubing, Thermostat Barrier		Appelez-nous	-
22	W10443762		Motor, Condenser		Appelez-nous	-
23	4-82573-002		Air Diffuser, Short		Appelez-nous	-
24	4-82556-002		Air Diffuser, Long		Appelez-nous	-
25	WPW10467271		Bracket, Condenser Motor   (Replaces: W10467271)				$ 23.97
26	3-60198-003		Glass, Shelf		Appelez-nous	-
27	W10380027		Trim, Cover Crisper		Appelez-nous	-
28	3-60212-001		Damper, Humidity Control		Appelez-nous	-
