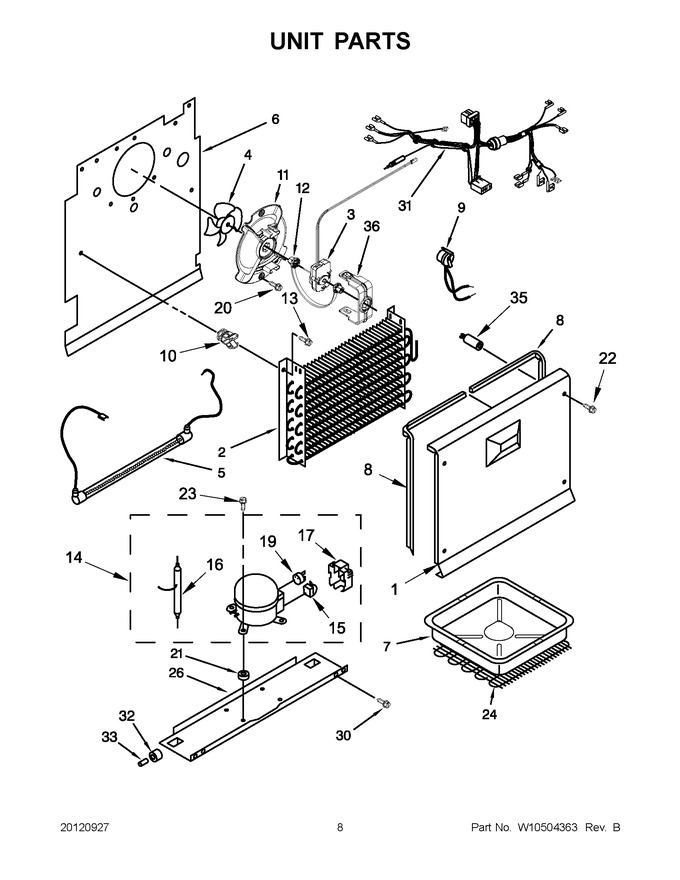

04 - Unit Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455863		Evaporator				$ 145.07
3	WPW10312014		Fan Motor   (Replaces: W10312014)				$ 266.60
4	W10426849		Blade, Fan				$ 144.06
5	W10452115		Heater, Defrost				$ 263.14
6	W10452115		Plate, Evaporator Mount				$ 263.14
7	4-82689-001		Pan, Drain				$ 129.96
8	3-60180-002		Gasket, Cover Evaporator (left Side)				$ 29.09
8	4390663		Gasket, Cover Evaporator (right Side)   (Replaces: 3-60180-001)				$ 250.95
9	W10491892		Bi-metal Defrost				$ 120.70
10	10623002		Clip, Evaporator				$ 12.11
11	W10457575		Shroud, Evaporator Motor				$ 29.98
12	W11690160		Grommet-fan Motor   (Replaces: W10150583)				$ 8.31
13	WP489478		Screw   (Replaces: 3-24004-107)				$ 8.18
14	W10447767		Compressor (includes Items 15, 16, 17 And 19)		Appelez-nous	-
15	2-35154-011		Relay		Appelez-nous	-
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 57.13
17	WP61002138		Cover   (Replaces: W10462677)				$ 9.21
19	W10445369		Overload		Appelez-nous	-
20	60001022		Screw   (Replaces: 3-80732-004)				$ 66.41
21	WP2163786		Grommet, Compressor   (Replaces: 13146462)				$ 8.36
22	W10451793		Screw		Appelez-nous	-
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
24	4-82683-002		Condenser				$ 278.70
26	W10470129		Pan, Compressor				$ 63.80
30	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 8.33
31	W10429662		Harness, Unit		Appelez-nous	-
32	3-60315-001		Roller, Front				$ 32.89
33	1-60316-001		Axle				$ 13.99
35	1-80275-101		Grommet		Appelez-nous	-
36	13058002		Clip, Evaporator Motor				$ 12.66
NI	N/P		Refrigerant Charge 3.4 Oz. (r-134a)		Appelez-nous	-
