SELECT A DIAGRAM

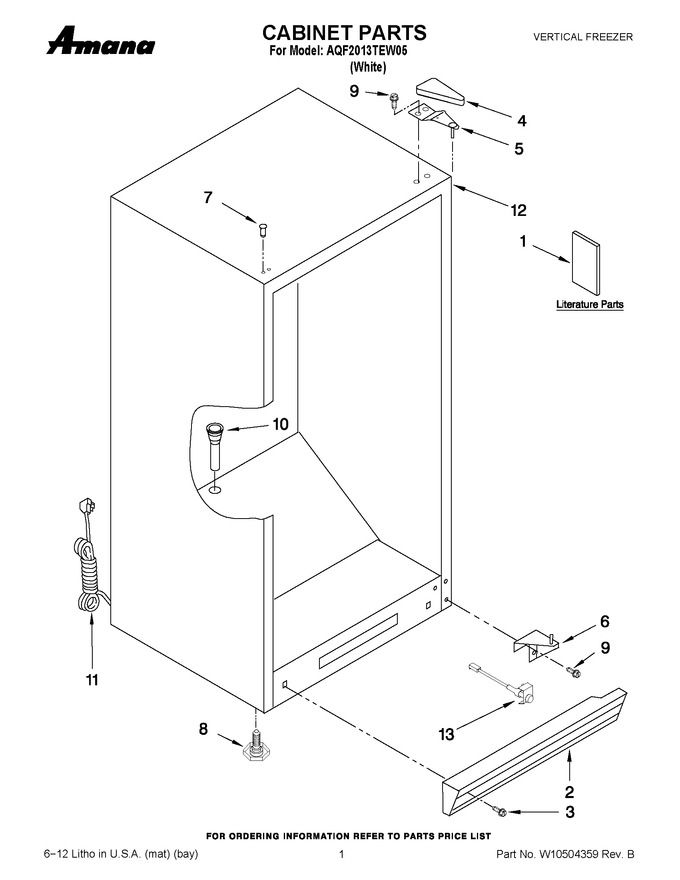

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10326809 | Energy Label/tag |
|
- | |||||
| 1 | W10326797 | Owners Manual |
|
- | |||||
| 2 | 4-60461-002 | Grille |
|
$ 43.83 | |||||
| 3 | WP489478 | Screw (Replaces: 3-24004-107) |
|
$ 8.18 | |||||
| 4 | 3-80838-003 | Cover, Hinge |
|
$ 4.50 | |||||
| 5 | 2-81016-105 | Hinge, Top |
|
$ 43.24 | |||||
| 6 | 4-82693-002 | Hinge, Bottom |
|
$ 84.14 | |||||
| 7 | WP2189000 | Plug (white) (Replaces: 1-60121-001) |
|
Immediately | $ 7.77 | ||||
| 8 | WP3-82710-001 | Leveler Leg (Replaces: 3-82710-001) |
|
Immediately | $ 20.32 | ||||
| 9 | 1-80271-106 | Screw |
|
$ 12.03 | |||||
| 10 | 3-60696-001 | Grommet, Drain |
|
$ 32.33 | |||||
| 11 | 4-82399-001 | Cord, Power |
|
$ 52.24 | |||||
| 12 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | 3-82130-001 | Light, Pwr Warning |
|
$ 76.33 |
