01 - Cabinet Parts


02 - Liner Parts

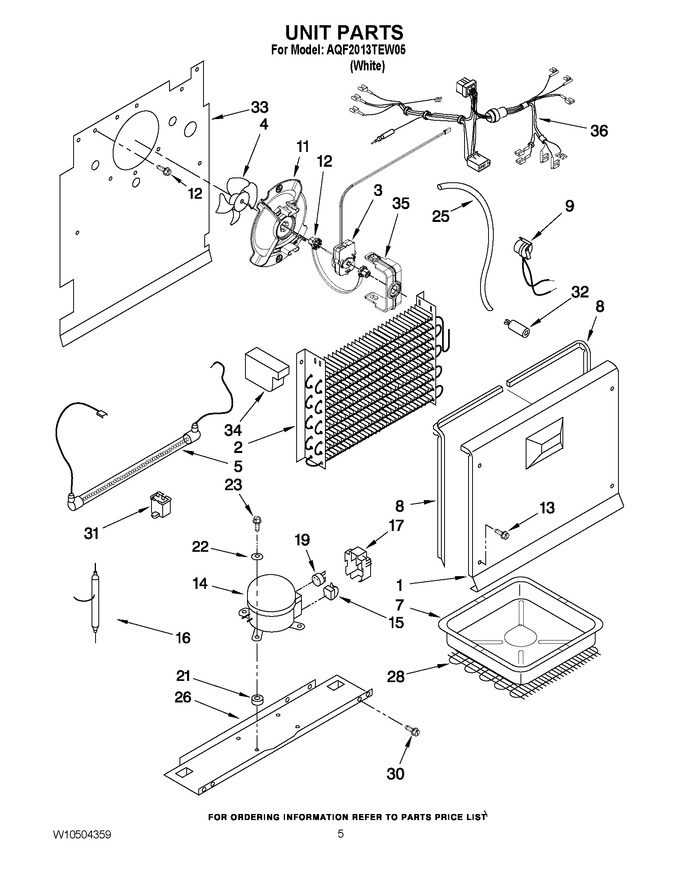

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455861		Evaporator				$ 257.12
3	W11780227		Motor, Fan   (Replaces: W10236142)			Immediately	$ 149.10
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
5	WPW10486820		Heater, Defrost   (Replaces: W10419550)				$ 236.02
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	4390663		Gasket, Cover Evaporator (right)   (Replaces: 3-60180-001)				$ 250.95
8	3-60180-002		Gasket, Cover Evaporator (left)				$ 29.09
9	WPW10491891		Bi-metal Defrost   (Replaces: W10491891)				$ 99.23
11	W10457575		Shroud, Evaporator				$ 29.98
12	W11690160		Grommet, Fan   (Replaces: W10150583)				$ 8.31
13	W10451793		Screw		Appelez-nous	-
14	W10309994		Compressor (includes Items 15,16,17,19 & 21)   (Replaces: 4-32972-143)			Immediately	$ 643.55
15	WPW10466655		Relay   (Replaces: W10466655)				$ 135.11
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 57.13
17	WP61002138		Cover   (Replaces: W10462677)				$ 9.21
19	WP2183456		Overload   (Replaces: 2-34286-037)				$ 147.19
21	WP2163786		Grommet, Compressor   (Replaces: 13146462)				$ 8.36
22	3-80681-103		Washer		Appelez-nous	-
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
25	W10451939		Exchanger, Heat		Appelez-nous	-
26	WPW10470133		Pan, Compressor   (Replaces: W10470133)				$ 101.79
28	W10451951		Condenser				$ 300.73
30	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 8.33
31	3-35956-013		Capacitor				$ 121.12
32	1-80275-101		Grommet		Appelez-nous	-
33	W10452115		Plate, Evaporator Mount				$ 263.14
34	W10452121		Block, Foam		Appelez-nous	-
35	13058002		Clip, Evap. Motor				$ 12.66
36	W10446601		Harness, Wire		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.2 Oz. (r-134a))		Appelez-nous	-
