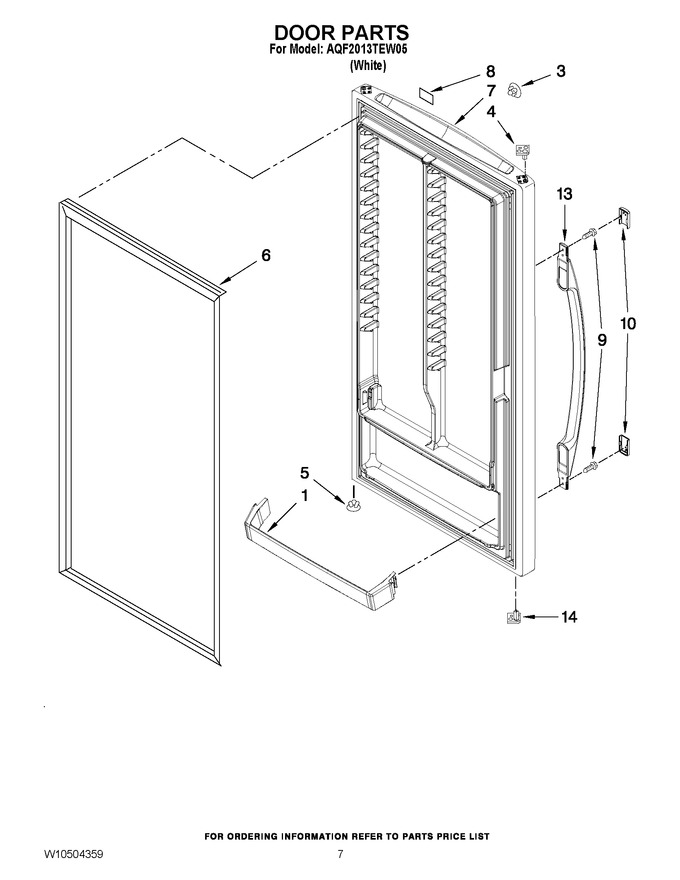

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4-82272-001 | Rail, Door |
|
$ 39.71 | |||||
| 3 | WP2189000 | Plug, Door (wh) (Replaces: 1-60121-001) |
|
Immediately | $ 7.77 | ||||
| 4 | 2-81124-001 | Stop, Door (upper) |
|
$ 31.15 | |||||
| 5 | 3-24898-007 | Vent Plug |
|
$ 11.34 | |||||
| 6 | WP4-65151-004 | Gasket, Door (Replaces: 4-65151-004) |
|
$ 382.94 | |||||
| 7 | 4-82827-047 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 8 | 2-82534-001 | Nameplate |
|
$ 43.08 | |||||
| 9 | W11772394 | Screw, Handle (Replaces: 3-24004-091) |
|
Immediately | $ 13.22 | ||||
| 10 | 2-82012-001 | Trim, Handle |
|
$ 10.34 | |||||
| 13 | 3-82013-003 | Handle Assembly (includes Item 10) |
|
$ 69.49 | |||||
| 14 | 2-81124-001 | Stop, Door (lower) |
|
$ 31.15 |
