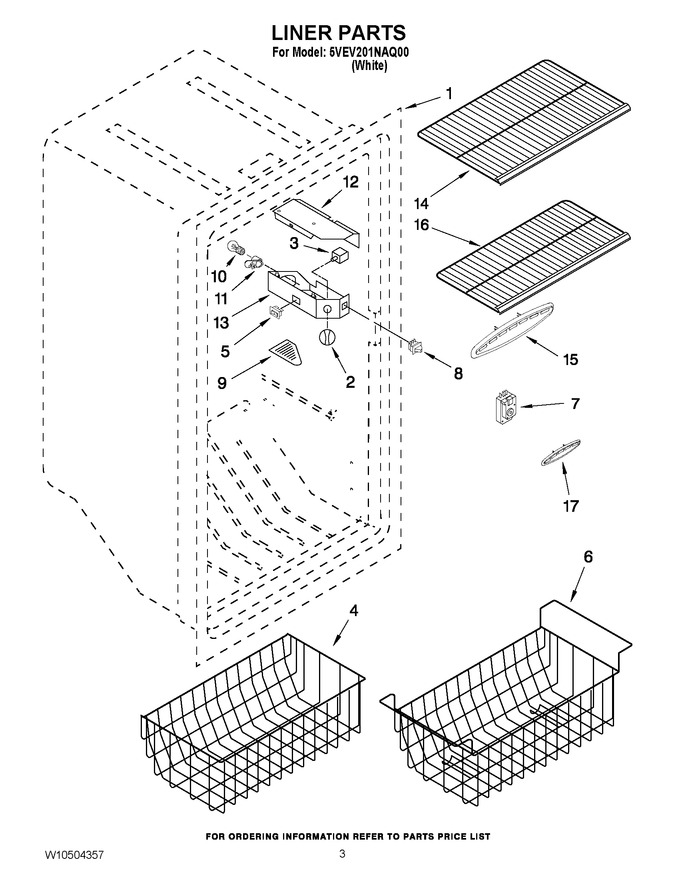

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control				$ 30.10
3	WPW10474749		Temp Control   (Replaces: W10474749)			Immediately	$ 229.44
4	4-82880-002		Basket, W/stop		Appelez-nous	-
5	W10496781		Switch, Alarm				$ 65.40
6	4-60064-001		Basket, Wire		Appelez-nous	-
7	WPW10532541		Defrost Timer   (Replaces: 3-81329-001)				$ 214.36
8	W10469826		Switch, Light		Appelez-nous	-
9	3-82391-001		Lens, Light				$ 84.74
10	WP67002552		Bulb, Light   (Replaces: 851682)			Immediately	$ 12.34
11	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
12	3-82392-001		Shield, Light		Appelez-nous	-
13	4-82389-003		Box, Control				$ 41.74
14	WP4-82634-001		Shelf, Upper Wire   (Replaces: 4-82634-001)				$ 155.55
15	4-82556-002		Air Diffuser, Upr		Appelez-nous	-
16	WP4-82977-001		Shelf, Lower Wire   (Replaces: 4-82977-001)				$ 152.75
17	4-82573-002		Air Diffuser, Lwr		Appelez-nous	-
