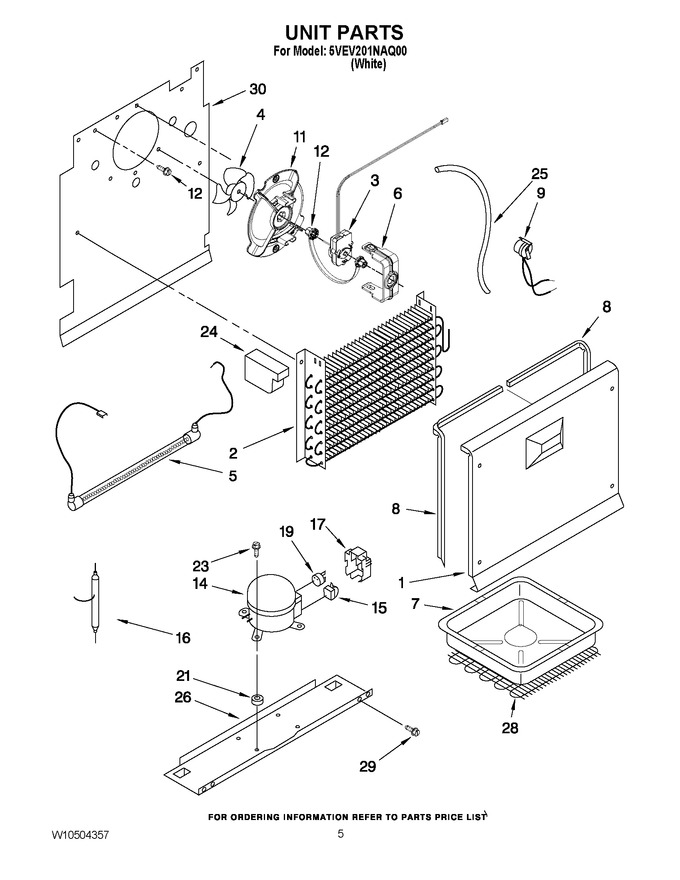

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10439287		Evaporator		Appelez-nous	-
3	WPW10312014		Motor, Fan   (Replaces: W10312014)				$ 266.60
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
5	W10426849		Heater, Defrost				$ 144.06
6	13058002		Clip, Evap. Motor				$ 12.66
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	3-60180-002		Gasket, Cover Evaporator (left)				$ 29.09
8	4390663		Gasket, Cover Evaporator (right)   (Replaces: 3-60180-001)				$ 250.95
9	W10491892		Bi-metal Defrost				$ 120.70
11	W10457575		Shroud, Motor				$ 29.98
12	W11690160		Grommet, Fan Motor   (Replaces: W10150583)				$ 8.31
14	W10183407		Compressor (includes Items 15,16,17,19 & 21)   (Replaces: W10447590)				$ 435.61
15	2-35154-011		Relay		Appelez-nous	-
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 57.13
17	WP61002138		Cover   (Replaces: W10462677)				$ 9.21
19	61004883		Overload   (Replaces: 2-34286-027)				$ 50.28
21	WP2163786		Compressor, Grommet   (Replaces: 13146462)				$ 8.36
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
24	W10452121		Block, Foam		Appelez-nous	-
25	W10474982		Exchanger, Heat		Appelez-nous	-
26	WPW10470133		Pan, Compressor   (Replaces: W10470133)				$ 101.79
28	W10451952		Condenser		Appelez-nous	-
29	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 8.33
30	W10452115		Plate, Evaporator Mount				$ 263.14
NI	N/P		Refrigerant Charge (6.2 Oz. (r134a))		Appelez-nous	-
