SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

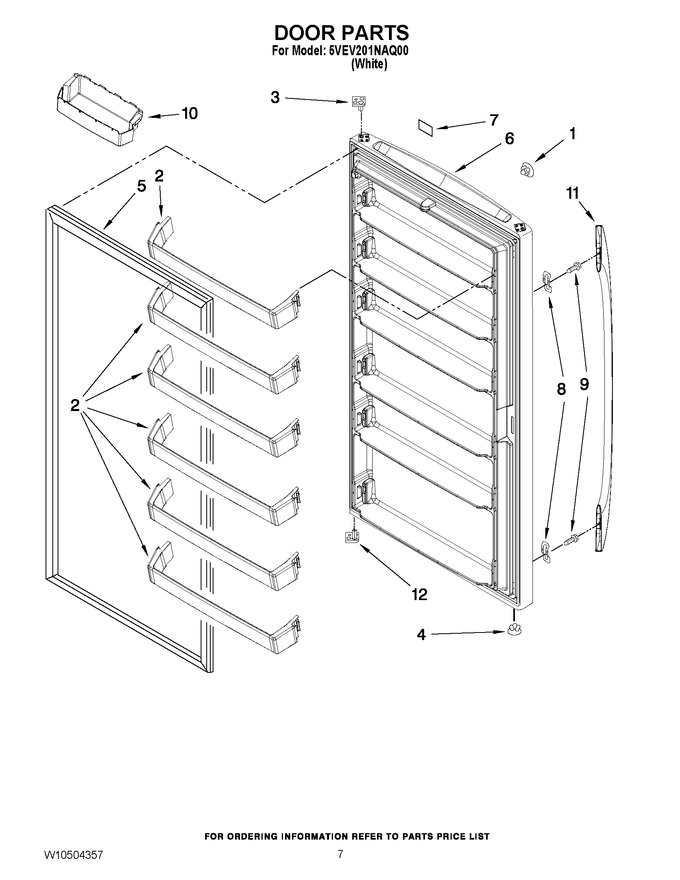

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2189000		Plug, Door   (Replaces: 1-60121-001)			Immediately	$ 7.77
2	WP4-65451-001		Rail, Door   (Replaces: 4-65451-001)				$ 99.84
3	2-81124-001		Stop, Door (upper)				$ 31.15
4	3-24898-007		Vent Plug				$ 11.34
5	WP4-65151-004		Gasket, Door   (Replaces: 4-65151-004)				$ 382.94
6	4-82827-079		Door Assembly (includes Interior Door Liner)		Appelez-nous	-
7	W11178521		Nameplate   (Replaces: W10481434)			Immediately	$ 63.13
8	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 36.55
9	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 8.78
10	WP4-82576-001		Bin Assembly   (Replaces: 4-82576-001)				$ 83.29
11	WPW10127761K		Handle   (Replaces: 3-83029-002)				$ 196.00
12	2-81124-001		Stop, Door (lower)				$ 31.15

    View Diagram in Separate Window       Print Part List
