01 - Cooktop Parts

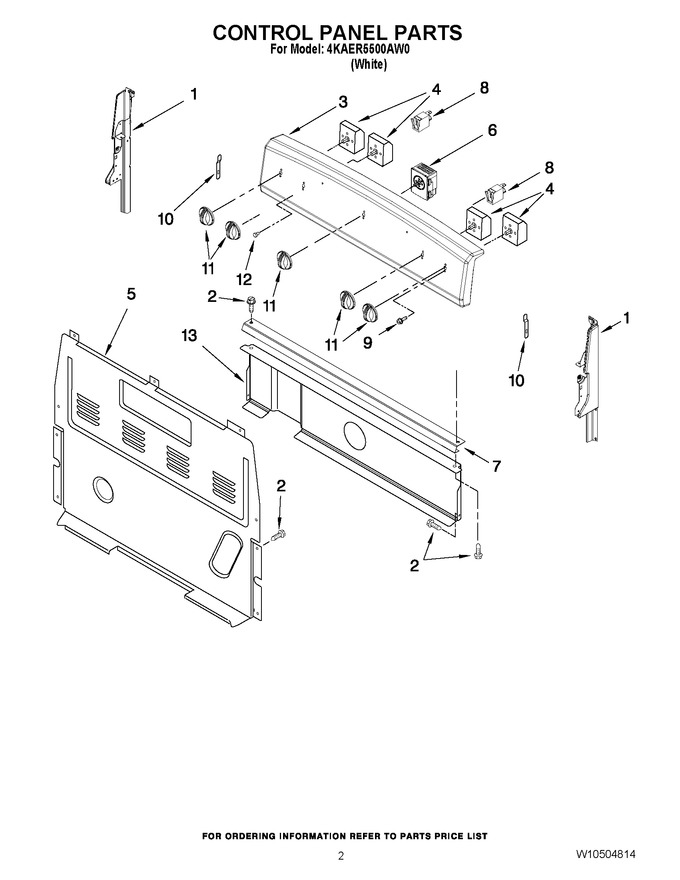

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (left Hand) (Replaces: W10184433) |
|
$ 40.43 | |||||
| 1 | W11219370 | Endcap (right Hand) (Replaces: W10184434) |
|
$ 57.93 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 3 | W11219378 | Panel, Console (Replaces: W10259290) |
|
$ 128.38 | |||||
| 4 | 5500-287 | Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 208.61 | |||||
| 6 | WPW10466758 | Cntrl-elec Roc70 (Replaces: W10466758) |
|
$ 323.87 | |||||
| 7 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 94.14 | |||||
| 8 | WP8523266 | Indicator, 250v (Replaces: 8523266) |
|
$ 111.90 | |||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.19 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 11 | WP9761962 | Knob (Replaces: 9761962) |
|
Immediately | $ 19.67 | ||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 13 | W10134247 | Shield, Heat |
|
Immediately | $ 341.73 |
