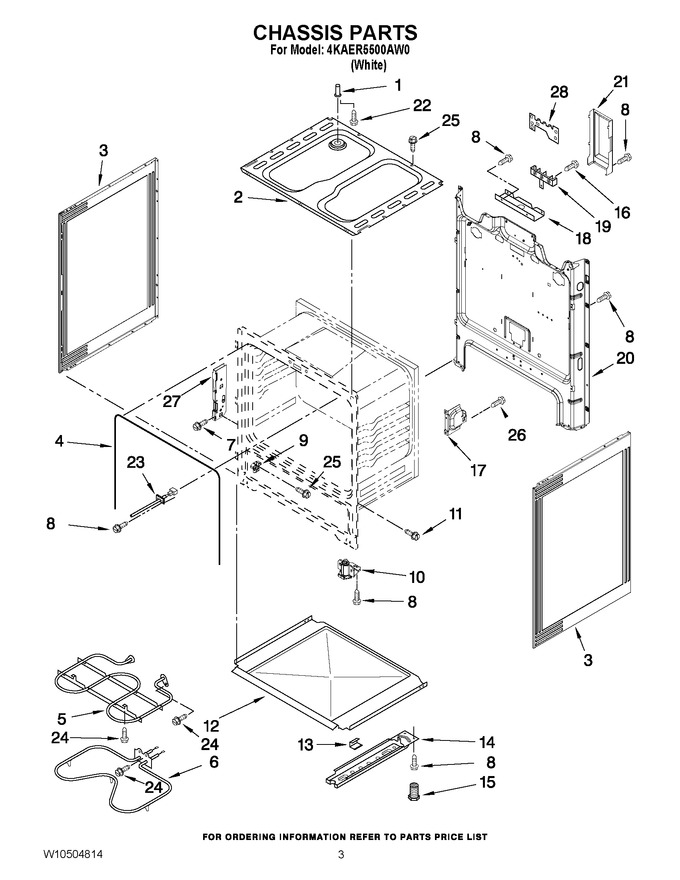

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9755804 | Vent Tube (Replaces: 3169143) |
|
$ 123.68 | |||||
| 2 | W11699791 | Box, Burner (Replaces: W10209613) |
|
$ 249.81 | |||||
| 3 | WPW10575396 | Panel, Side (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | W11542153 | Seal, Oven Door (Replaces: W10129032) |
|
Immediately | $ 50.20 | ||||
| 5 | W10856603 | Element, Broil (3400w) (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 6 | WPW10308477 | Element, Bake (2400w) (Replaces: W10308477) |
|
Immediately | $ 71.86 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.82 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 9 | W10763667 | Glide, Drawer Frnt (Replaces: W10317898) |
|
Immediately | $ 107.68 | ||||
| 10 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.76 | |||||
| 12 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 99.39 | |||||
| 13 | W10137382 | Clip, Panel Side |
|
Immediately | $ 46.11 | ||||
| 14 | W11818353 | Assy, Base Rail (right Hand) (Replaces: W10390008) |
|
$ 59.68 | |||||
| 14 | W11818353 | Assy, Base Rail (left Hand) (Replaces: W10390007) |
|
$ 59.68 | |||||
| 15 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 7.85 | ||||
| 16 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.95 | |||||
| 17 | W10404688 | Bracket, Oven Support, Latch (Replaces: W10355173) |
|
$ 16.85 | |||||
| 18 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 19 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.19 | ||||
| 19 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 20 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 21 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 132.95 | |||||
| 22 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 7.68 | |||||
| 23 | WPW10181986 | Sensor (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 24 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.82 | ||||
| 25 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 27 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 28 | W10451176 | Suppressor, Transient |
|
- | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 55.47 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 106.09 | |||||
| NI | WPW10281322 | Kit, Bare Wire (Replaces: W10281322) |
|
$ 8.45 |
