01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:

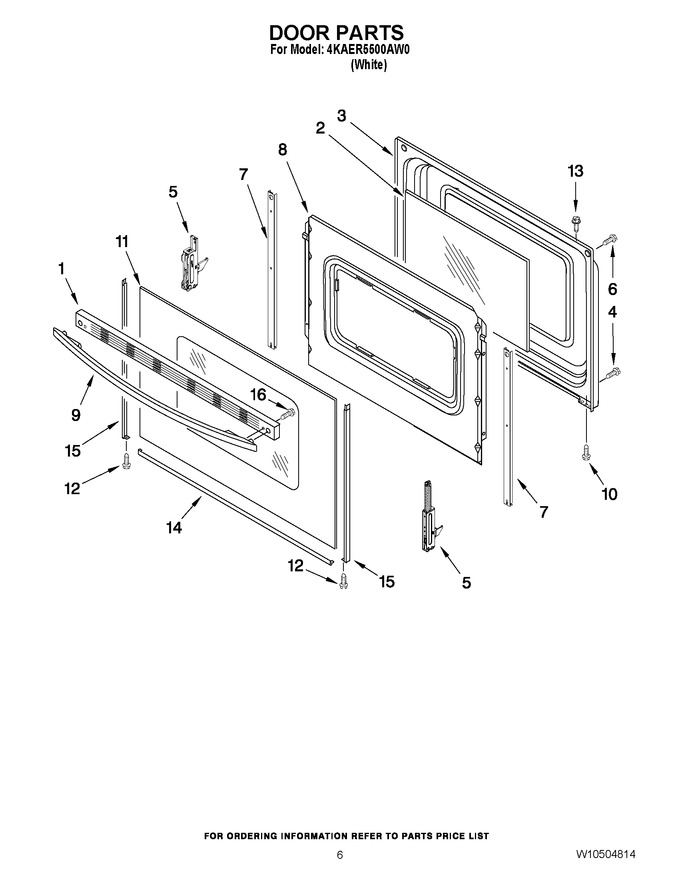

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Vent (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 2 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 3 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 4 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 5 | WPW10299227 | Hinge (passive(no Spring)) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 5 | WPW10299225 | Hinge (active (w/spring)) (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 6 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 7 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 27.68 | ||||
| 8 | W11685635 | Retainer, Insul. (Replaces: 9761501) |
|
$ 188.29 | |||||
| 9 | W10144888 | Handle, Door |
|
$ 100.10 | |||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 11 | WPW10118454 | Glass, Outer (Replaces: W10118454) |
|
$ 324.91 | |||||
| 12 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 13 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 14 | W11594186 | Trim, Lower (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 15 | WP8523166 | Trim, Door Side (right Side) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 15 | WP8523172 | Trim, Door Side (left Side) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 16 | WP3400074 | Screw (Replaces: W10178143) |
|
$ 7.55 |
