SELECT A DIAGRAM

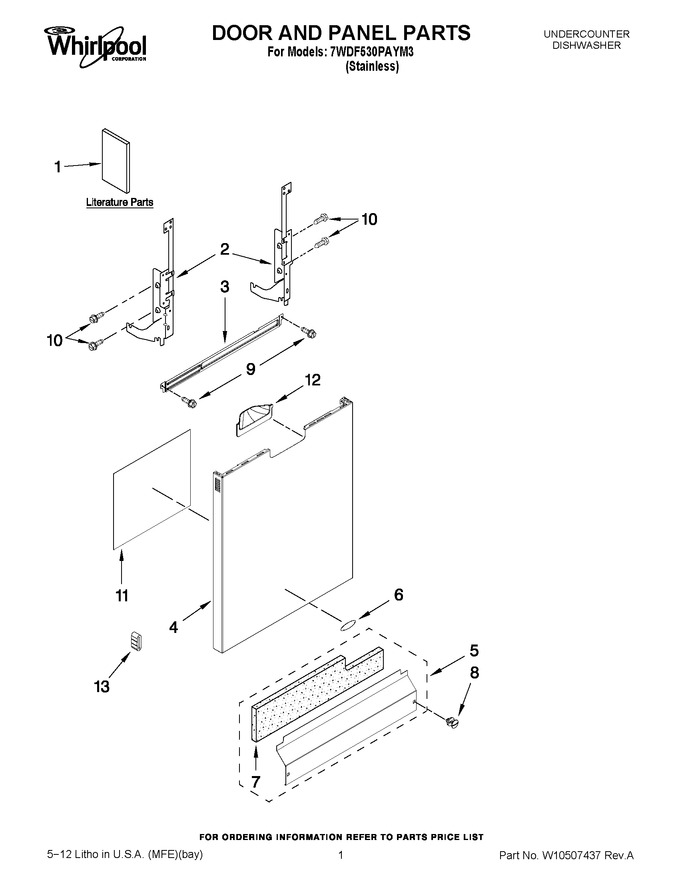

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10435042		Instructions, Installation		Appelez-nous	-
1	W10350360		Use & Care Guide		Appelez-nous	-
1	W10380339		Tech Sheet (spanish)		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: W10274921)			Immediately	$ 83.93
2	W11806566		Arm, Hinge (left)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Door Brace   (Replaces: W10195120)			Immediately	$ 32.88
4	W10350174		Panel Front (includes 6 & 12)				$ 155.59
5	W10827631		Access Panel   (Replaces: W10369023)			Immediately	$ 195.64
6	WPW10393264		Name Plate   (Replaces: W10393264)				$ 67.74
7	W10831329		Insulation, Access Panel   (Replaces: W10300769)			Immediately	$ 43.30
8	WPW10503548		Screw   (Replaces: W10331789)			Immediately	$ 30.39
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
11	W11126003		Insulation, Door   (Replaces: W10315897)			Immediately	$ 65.25
12	W10369758		Pocket Assy		Appelez-nous	-
13	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93

    View Diagram in Separate Window       Print Part List
