SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts

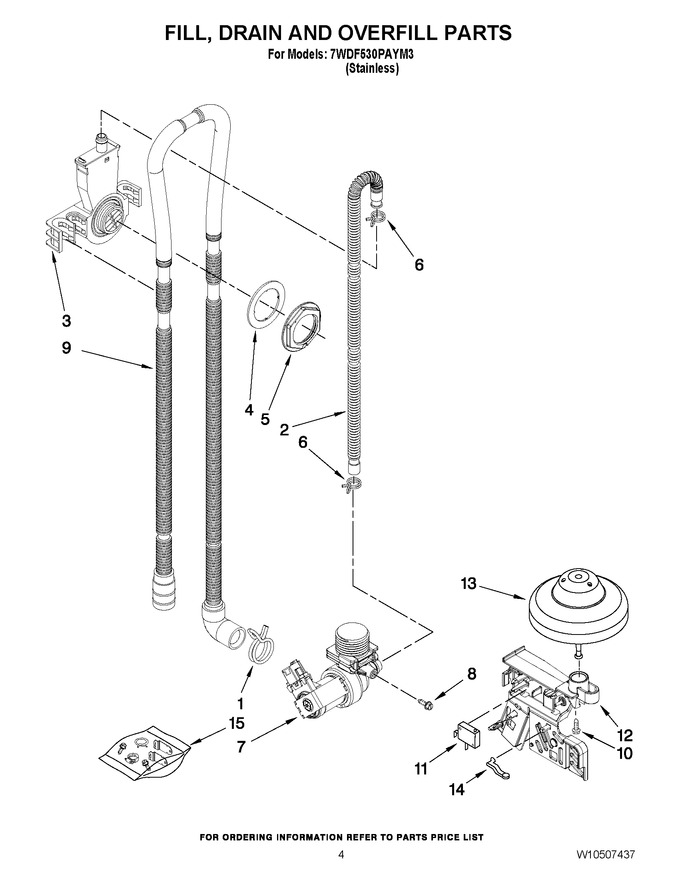

04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
2	W10878507		Hose, Inlet   (Replaces: 8531412)			Immediately	$ 77.06
3	WPW10195536		Water Inlet (also Order Item 4)   (Replaces: W10195536)			Immediately	$ 86.31
4	WP8531323		Gasket   (Replaces: 8531323)			Immediately	$ 41.07
5	WPW10508676		Nut, Inlet (also Order Item 4)   (Replaces: 8531327)				$ 19.35
6	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 8.82
7	W11175771		Fill Valve Assembly   (Replaces: W10195047)			Immediately	$ 73.69
8	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
9	WPW10545278		Drain Loop With Check Valve   (Replaces: W10137608)			Immediately	$ 74.41
10	WP304231		Screw   (Replaces: 304231)			Immediately	$ 8.14
11	WPW10195039		Switch, Overfill Control   (Replaces: W10195039)			Immediately	$ 77.42
12	WPW10316267		Standpipe, Overfill   (Replaces: W10316267)				$ 31.90
13	W11814886		Float & Retainer Assembly   (Replaces: W10346525)			Immediately	$ 79.15
14	WPW10195037		Lever, Overflow Switch   (Replaces: W10195037)			Immediately	$ 11.74
15	W10415269		Miscellaneous Parts Bag (includes 2 Screws, 2 Hose Clamps & 2 Undercounter Brackets)				$ 44.94

    View Diagram in Separate Window       Print Part List
