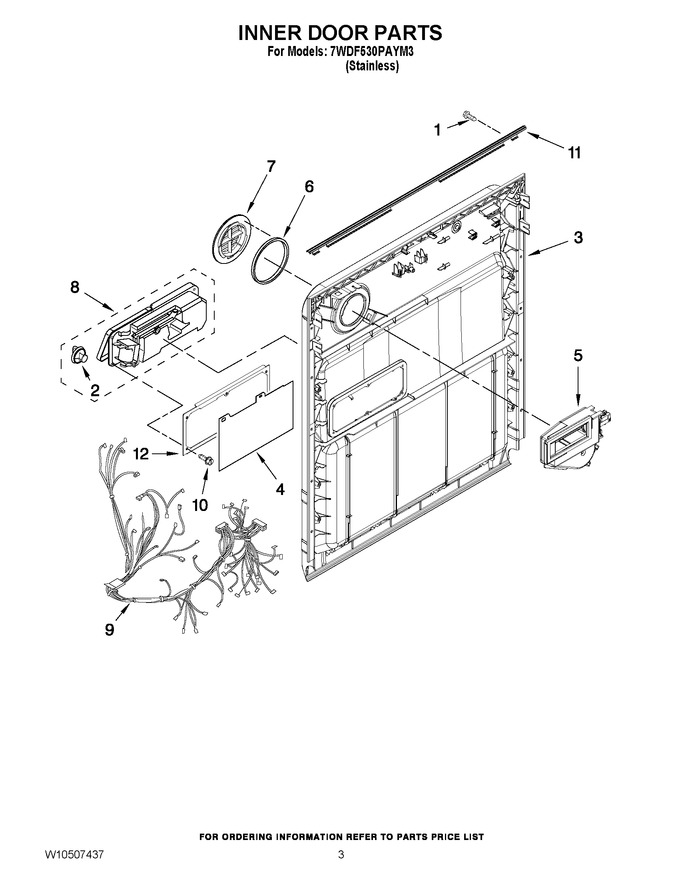

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw, Door (Replaces: W10348413) |
|
Immediately | $ 8.03 | ||||
| 2 | WP8558307 | Knob, Rinse Aid (Replaces: 8558307) |
|
Immediately | $ 21.27 | ||||
| 3 | W10300784 | Inner Door (also Order Item 6) |
|
$ 101.48 | |||||
| 4 | WPW10482094 | Cover, Dispenser (Replaces: W10482094) |
|
Immediately | $ 30.50 | ||||
| 5 | WPW10329609 | Vent Assembly (also Order Item 6) (Replaces: W10329609) |
|
Immediately | $ 86.34 | ||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WPW10334900 | Deflector, Vent (also Order Item 6) (Replaces: W10334900) |
|
$ 43.67 | |||||
| 8 | WPW10195175 | Dispenser, Assembly (Replaces: W10195172) |
|
Immediately | $ 116.18 | ||||
| 9 | WPW10496086 | Wiring Harness (Replaces: W10358238) |
|
$ 256.37 | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.64 | ||||
| 11 | W10837566 | Seal, Console/door (Replaces: W10274923) |
|
Immediately | $ 82.70 | ||||
| 12 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 36.04 |
