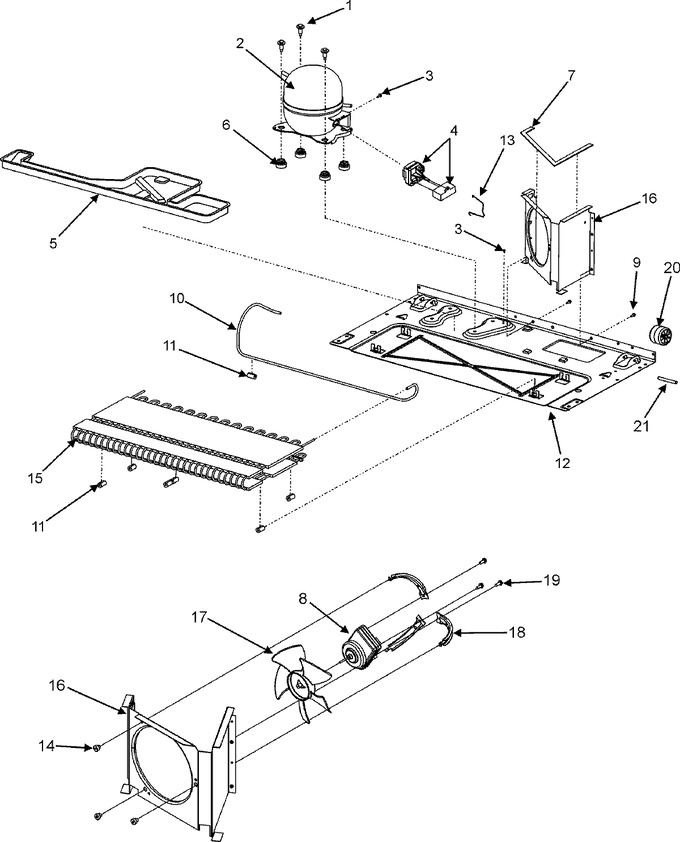

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12846902		Screw, Shoulder   (Replaces: 67006432)	10			$ 12.99
2	W10160407		Kit, Compressor   (Replaces: 12002634)	10			$ 599.92
3	12992301		Screw   (Replaces: 67006433)	10			$ 7.32
4	W10613606		Overload/relay W/capacitor   (Replaces: 67005560)	10		Immediately	$ 86.59
5	WP12579803		Pan, Drain 1 Way   (Replaces: 67007175)	10			$ 245.45
6	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 7.19
7	WP854334		Seal   (Replaces: 61003210)	10			$ 13.28
8	W11613295		Motor, Condenser Fan   (Replaces: 67004432)	10		Immediately	$ 136.84
9	67006425		Screw, Sm	10		Immediately	$ 6.95
10	WP12866903		Tube, Discharge   (Replaces: 67004700)	10		Immediately	$ 133.53
11	67005680		Grommet, Condenser	10			$ 21.05
13	12576801		Strap, Bale	10	Appelez-nous	-
14	61004743		Grommet, Bracket	10			$ 5.51
15	WP67006131		Condenser   (Replaces: 67006131)	10			$ 366.74
16	67001090		Shroud, Condenser Fan	10	Appelez-nous	-
17	W10156818		Blade, Cond Fan   (Replaces: 67004952)	10		Immediately	$ 62.11
18	WP67004953		Bracket, Cond Motor   (Replaces: 67004953)	10			$ 68.83
19	WP67004954		Screw   (Replaces: 67004954)	10			$ 7.79
20	WP67005149		Roller   (Replaces: 67005149)	10		Immediately	$ 22.02
21	67006434		Axle, Roller	10		Immediately	$ 7.52
NI	67005251		Harness, Mc	10			$ 54.90
