SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Freezer Shelving


07 - Handles & Trim


08 - Ice Maker 61005508


09 - Interior Cabinet


10 - Left Refrigerator Door


11 - Ref Dr Storage & Center Hinges


12 - Refrigerator Shelving


13 - Right Refrigerator Door


14 - Supplemental Information


15 - Wiring Information

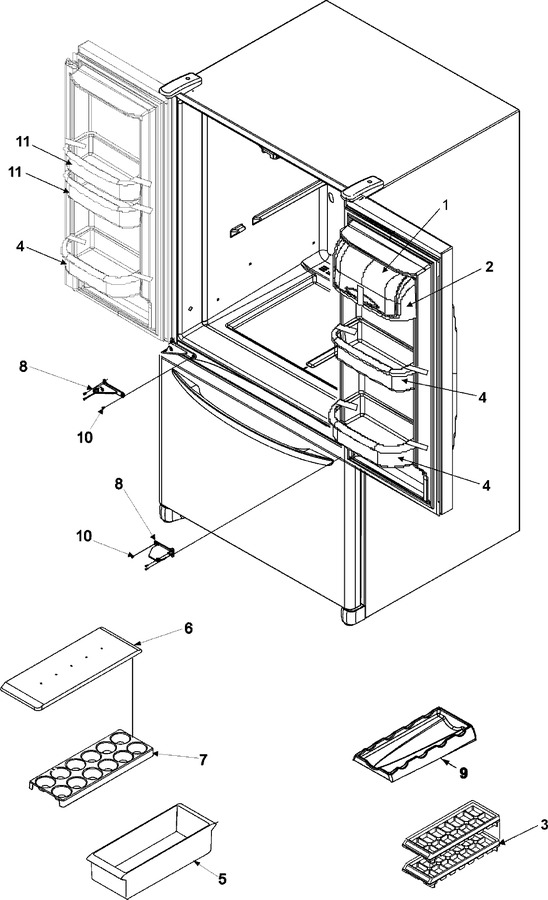

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12744905		Dairy Assy   (Replaces: 67003819)	10			$ 108.56
2	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 83.82
3	WP841180A		Tray, Ice   (Replaces: 67001205)	10		Immediately	$ 45.56
4	67003212		Gripper, Bucket	10	Appelez-nous	-
4	WPW10289497		Bucket, Ref Door (gal)   (Replaces: 67005258)	10		Immediately	$ 77.23
5	10423131		Bin, Utility	10			$ 31.13
6	10436404		Lid, Utility	10			$ 60.85
7	10436506		Tray, Egg	10			$ 8.28
8	W10918164		Hinge, Center (rt-blk)   (Replaces: 67006443)	10			$ 86.64
9	67001656		Trivet, Bottle	10			$ 69.04
10	W11573362		Screw   (Replaces: 67006380)	10			$ 14.02
11	WPW10371193		Bucket Assy, Ref. (med W/grip)   (Replaces: 67003770)	10		Immediately	$ 74.80
11	67005453		Gripper, Bkt French Door Gal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
