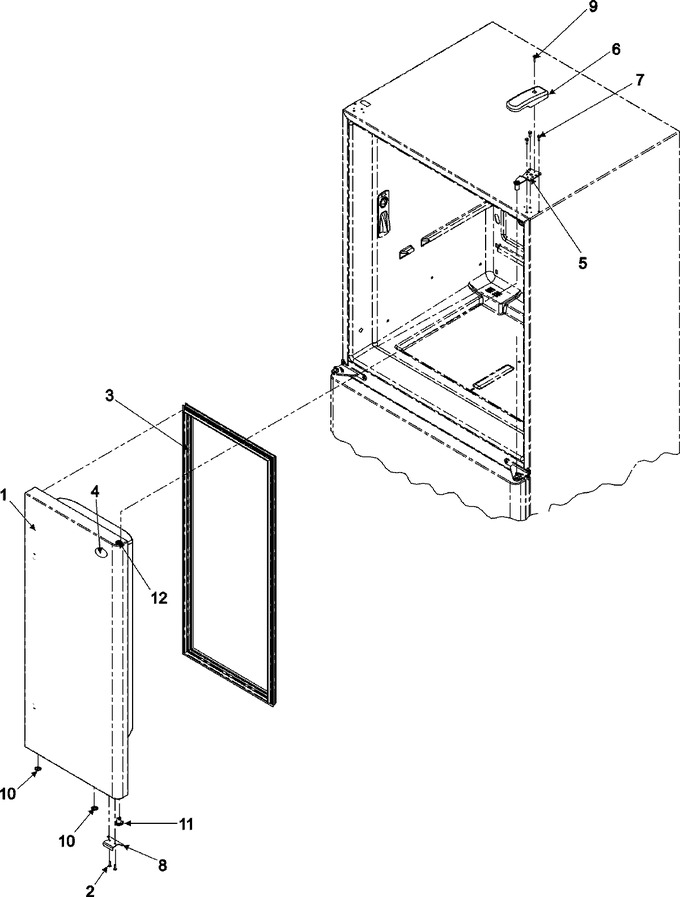

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006594		Door Assy.,rt Ref Foam (stnls)	10	Appelez-nous	-
2	WP98165		Screw   (Replaces: 67006287)	10			$ 8.00
3	W11368721		Gasket, French Door (blk)   (Replaces: 67003547)	10		Immediately	$ 169.21
4	Y12528501		Nameplate (amana Plus)	10		Immediately	$ 59.75
5	WP12566606ED		Hinge, Top (blk)   (Replaces: 67001011)	10		Immediately	$ 44.89
5	12579702		Shim, Top Hinge	10	Appelez-nous	-
6	12684202B		Cover, Top Hinge (rt-blk)	10	Appelez-nous	-
7	WP489349		Screw   (Replaces: 67006303)	10		Immediately	$ 7.88
8	W11708403		Stop, Door (blk)   (Replaces: 67007011)	10		Immediately	$ 14.05
9	WP8281196		Screw   (Replaces: 67006521)	10		Immediately	$ 7.19
10	67004838		Plug, Vent (blk)	10			$ 10.68
11	WP67003639		Closure, Door (blk)   (Replaces: 67003639)	10			$ 86.02
12	WP67002731		Bushing, Door (blk)   (Replaces: 67002731)	10		Immediately	$ 7.85

    View Diagram in Separate Window       Print Part List
