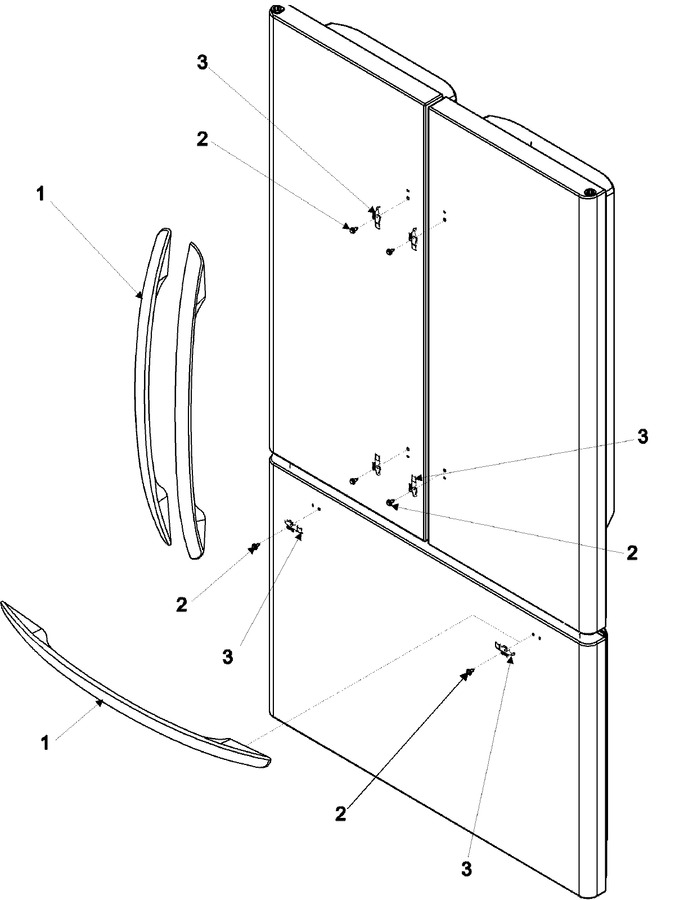

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004373		Handle Assy., Door (wht)	10			$ 76.83
2	WP7101P126-60		Screw, Sm No.10   (Replaces: 67003800)	10		Immediately	$ 8.36
3	WP67006852		Clip,handle Butterfly   (Replaces: 12723002)	10			$ 27.25
NI	67003876		Card, Handle Release	10			$ 6.43
