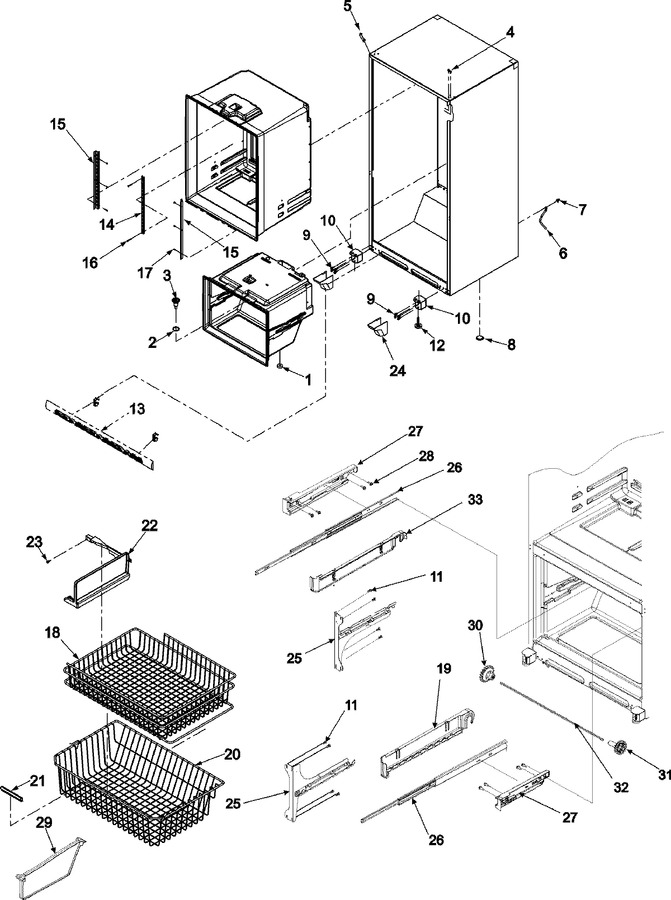

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.41 | |||||
| 2 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 10.92 | |||||
| 3 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 4 | 67006030 | Pop Rivet |
|
- | |||||
| 5 | 67003484 | Cover, Corner (wht) |
|
$ 20.40 | |||||
| 6 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 7 | 67001067 | Clip, Drain Tube |
|
$ 9.20 | |||||
| 8 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 9 | 67003858 | Screw, Bottom Hinge |
|
- | |||||
| 10 | 67001239 | Hinge, Bottom E-ct (wht) |
|
- | |||||
| 11 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 12 | W11177593 | Brake, Foot (Replaces: 67003868) |
|
$ 11.60 | |||||
| 13 | 12627302 | Clip, Toe Grille |
|
$ 5.84 | |||||
| 13 | 67002223 | Toe Grille Assy (wht) |
|
- | |||||
| 14 | 67001073 | Ladder, Center |
|
$ 54.18 | |||||
| 15 | 67002489 | Ladder, L/r Side |
|
$ 71.09 | |||||
| 16 | W10709795 | Screw (Replaces: M0231425) |
|
$ 13.13 | |||||
| 17 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 6.95 | ||||
| 18 | 67004988 | Basket, Frz. (upr) |
|
- | |||||
| 19 | W10251557 | Cradle, Basket (rt) (Replaces: 67004729) |
|
$ 102.24 | |||||
| 20 | W10503185 | Basket, Lower Fz (Replaces: 67004813) |
|
$ 149.50 | |||||
| 21 | 10508506 | Handle, Basket/shelf |
|
- | |||||
| 22 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 23 | 67001310 | Screw |
|
- | |||||
| 24 | 12561901W | Cover, Lwr Hinge (wht) |
|
$ 6.37 | |||||
| 25 | WPW10330991 | Bracket, Drawer Slide (lt) (Replaces: 67004732) |
|
$ 156.49 | |||||
| 25 | WPW10330993 | Bracket, Drawer Slide (rt) (Replaces: 67004733) |
|
$ 158.18 | |||||
| 26 | 67004863 | Slide, Drawer Xx |
|
- | |||||
| 27 | W10284690 | Adapter (lt) (Replaces: 67004971) |
|
$ 73.76 | |||||
| 27 | 67004972 | Adapter (rt) |
|
$ 30.98 | |||||
| 28 | WP489474 | Screw, Sm (Replaces: 67004892) |
|
Immediately | $ 7.97 | ||||
| 29 | 67004812 | Divider, Basket (lwr) |
|
- | |||||
| 30 | 12002497 | Gear, Spur (Replaces: 67004215) |
|
Immediately | $ 22.51 | ||||
| 31 | 12002497 | Gear, Spur (Replaces: 67004216) |
|
Immediately | $ 22.51 | ||||
| 33 | W10251557 | Cradle, Basket (lt) (Replaces: 67004728) |
|
$ 102.24 |
