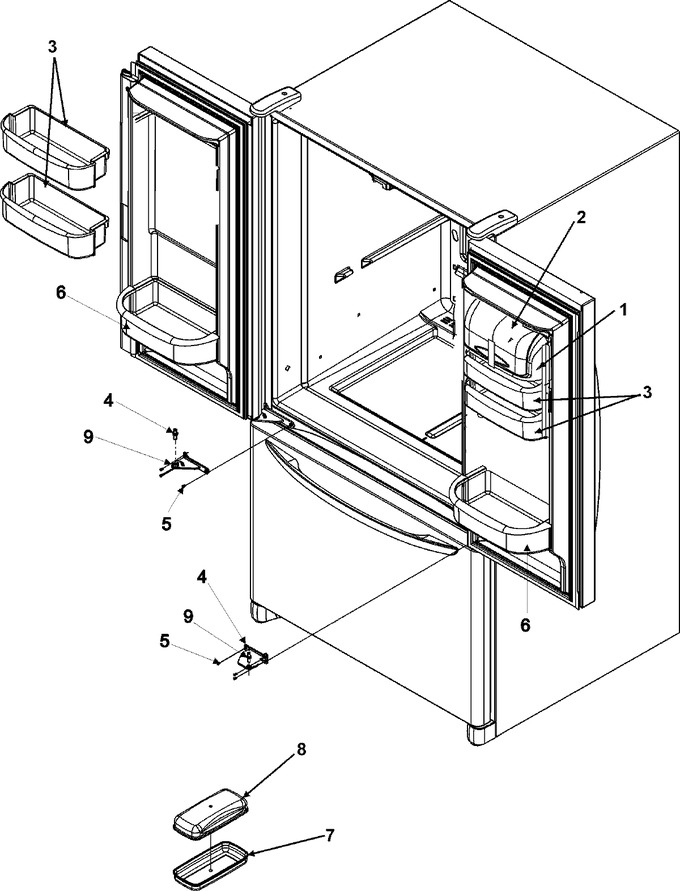

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 83.82
2	WP12744905		Dairy Assy   (Replaces: 67003819)	10			$ 108.56
3	WPW10324005		Bucket, Med Ref Door   (Replaces: 67003766)	10			$ 74.05
4	WP67006642		Pin, Center Hinge   (Replaces: 67002734)	10			$ 7.93
5	W11573362		Screw, T. F.   (Replaces: M0226233)	10			$ 14.02
6	WPW10289497		Bucket, Ref Door (gal)   (Replaces: 67005258)	10		Immediately	$ 77.23
7	67004404		Tray, Butter	10	Appelez-nous	-
8	67004405		Lid, Butter Tray	10	Appelez-nous	-
9	W11689473		Hinge, Center (wht)   (Replaces: 67001168)				$ 66.47

    View Diagram in Separate Window       Print Part List
