01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Shelf Parts


06 - Top Grille And Unit Cover Parts


07 - Freezer Liner And Air Flow Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


14 - Motor And Ice Container Parts

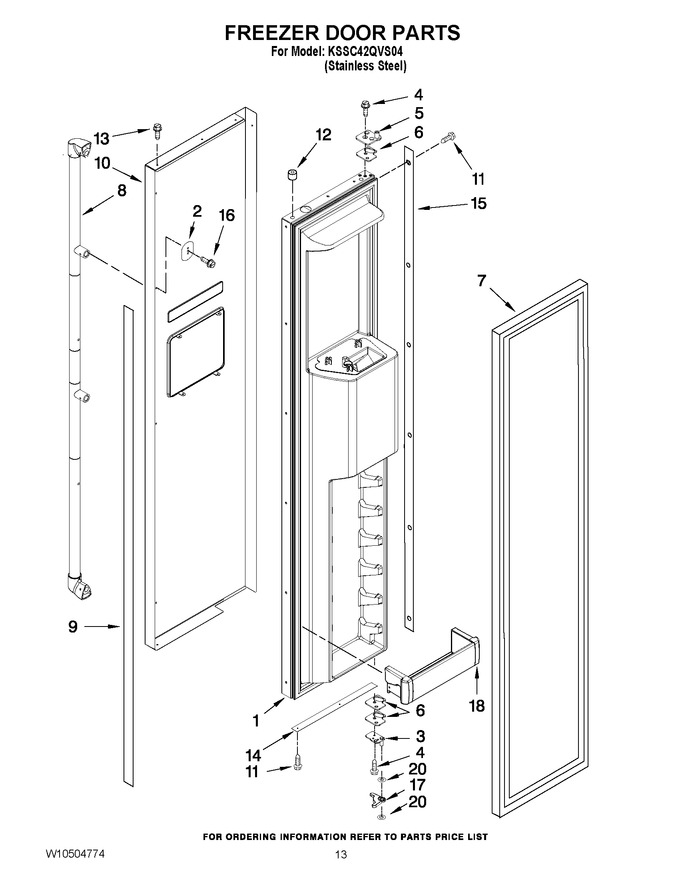

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292446		Freezer Door (includes Item 7 And Dispenser Front Parts)		Appelez-nous	-
2	W10127710		Plate, Door Handle			Immediately	$ 24.70
3	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 60.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.02
5	W11724512		Hinge, Top   (Replaces: 2266854)				$ 297.62
6	W11673500		Spacer, Hinge   (Replaces: 2316804)			Immediately	$ 108.07
7	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)			Immediately	$ 313.96
8	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 268.03
9	2309060		Spacer Assy, Door (handle Side)		Appelez-nous	-
10	2307310		Skin, Door		Appelez-nous	-
11	WP8281250		Screw   (Replaces: 8281250)				$ 10.88
12	2005433		Spacer, Door Skin (top)				$ 22.22
13	W10759522		Screw   (Replaces: 488568)				$ 7.75
14	2257385		Spacer, Door-skin (bottom)		Appelez-nous	-
15	W10142296		Spacer Assy, Door (hinge Side)		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
17	2006342		Gap Cover, Bottom		Appelez-nous	-
18	W10323602		Bin, Door				$ 93.36
20	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
