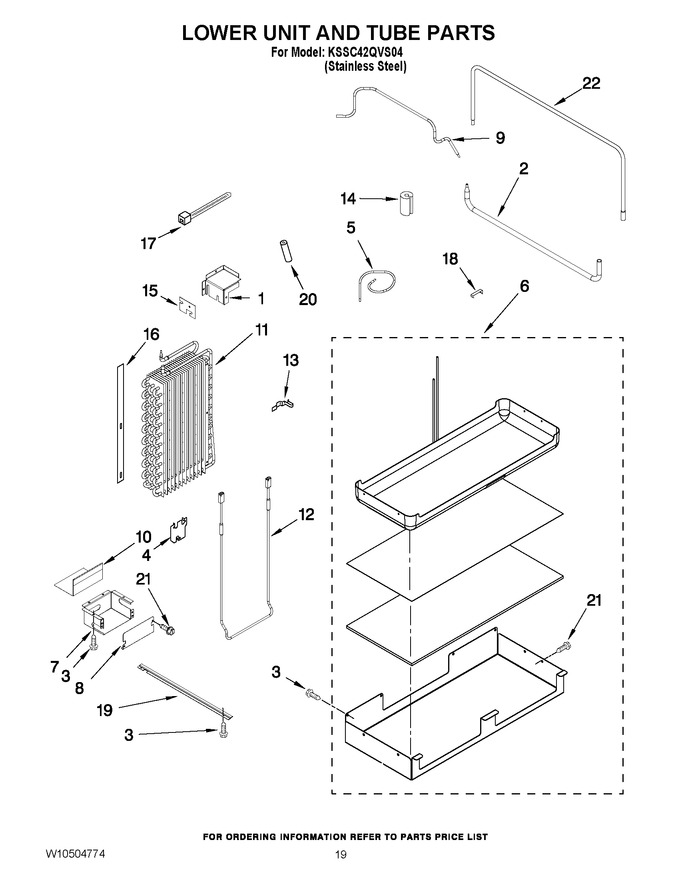

12 - Lower Unit And Tube Parts


13 - Icemaker Parts


14 - Motor And Ice Container Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160981		Bracket Assembly,air Return		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 38.55
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	W10157752		Bracket, Heater Mounting		Appelez-nous	-
5	W10431124		Suction Tube				$ 32.73
6	W11623101		Drain Pan Assy   (Replaces: W10281063)			Immediately	$ 375.26
7	WPW10309012		Wire Cover Bottom   (Replaces: W10309012)				$ 77.64
8	W11756952		Wire Cover Box   (Replaces: W10321048)		Appelez-nous	-
9	W10412488		Tube, Discharge				$ 114.93
10	W10321050		Wire Shield Cover		Appelez-nous	-
11	WPW10427992		Evaporator   (Replaces: W10427992)				$ 349.34
12	W11812025		Heater, Defrost   (Replaces: W10140161)				$ 72.84
13	1113048		Clamp, Heater		Appelez-nous	-
14	W11715935		Grommet   (Replaces: W10413009)				$ 12.93
15	W10139908		Seal, Return Air				$ 12.44
16	W10432308		Gasket, Evaporator		Appelez-nous	-
17	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.90
18	W10169509		Clip, Retainer		Appelez-nous	-
19	2320554		Support, Drain Pan		Appelez-nous	-
20	2215648		Dampener				$ 12.58
21	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
22	W10234131		Tube, Transition (condenser/heater)		Appelez-nous	-
