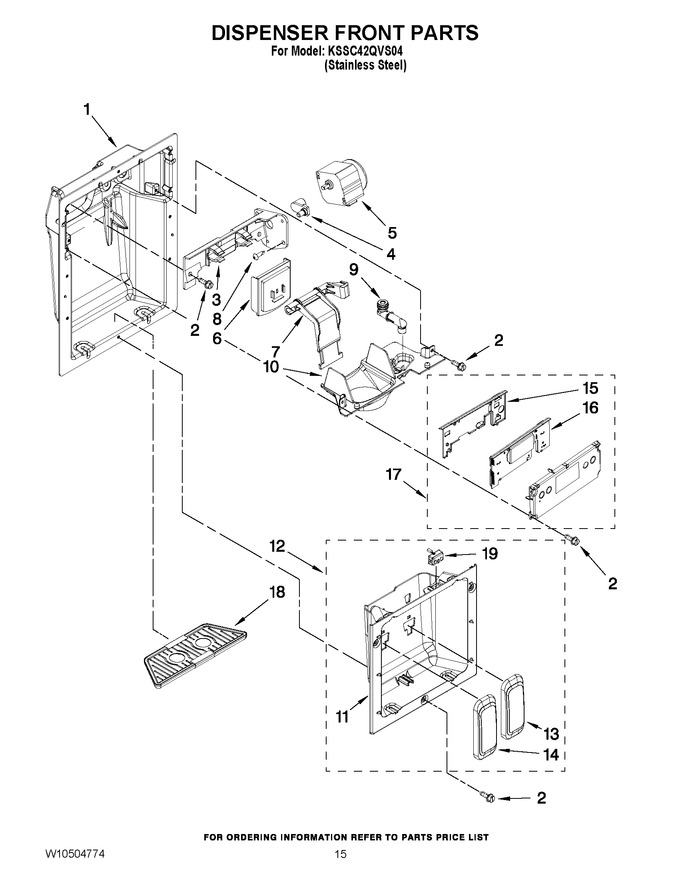

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 3 | WPW10546285 | Bracket, Motor (Replaces: W10132946) |
|
Immediately | $ 104.97 | ||||
| 4 | WP2305242 | Connector, Door Bracket (Replaces: 2305242) |
|
Immediately | $ 101.82 | ||||
| 5 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 | ||||
| 6 | WPW10504458 | Door, Ice (Replaces: W10504458) |
|
Immediately | $ 25.40 | ||||
| 7 | WPW10546285 | Support, Ice Door (Replaces: 2318020) |
|
Immediately | $ 104.97 | ||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | WP2305235 | Spigot (Replaces: 2305235) |
|
$ 147.07 | |||||
| 10 | 2318017 | Separator Assembly |
|
$ 125.33 | |||||
| 11 | N/P | Housing, Middle (not Available Order Item 12) |
|
- | |||||
| 12 | WPW10260622 | Housing Assembly (Replaces: W10260622) |
|
$ 491.17 | |||||
| 13 | W10133603 | Water Paddle Assy (Replaces: 2305307GN) |
|
Immediately | $ 339.20 | ||||
| 14 | W10133603 | Ice Paddle Assy (Replaces: 2305306GN) |
|
Immediately | $ 339.20 | ||||
| 15 | 2305219 | Cover, Control |
|
$ 92.99 | |||||
| 16 | WP2321746 | Electronic Control (includes Item 15) (Replaces: 2321746) |
|
Immediately | $ 318.84 | ||||
| 17 | WPW10151236 | Ui Assy, Dispenser (Replaces: W10151236) |
|
Immediately | $ 518.52 | ||||
| 18 | W11177738 | Tray, Housing (Replaces: 2318062US) |
|
Immediately | $ 77.29 | ||||
| 19 | W10222215 | Led Assembly (Replaces: 2305342) |
|
$ 154.54 |
