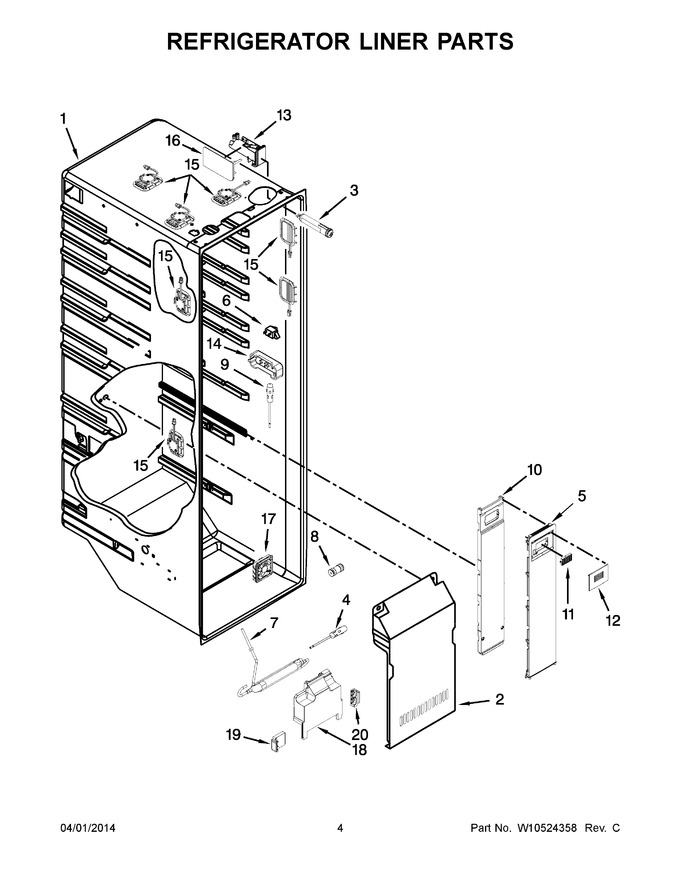

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10387382		Evaporator Cover   (Replaces: W10387382)				$ 245.04
3	W10569758		Water Filter				$ 0.03
4	W10316760		Thermistor, Evaporator Fan   (Replaces: W10323459)			Immediately	$ 81.86
5	W10384770		Cover, Air Tower		Appelez-nous	-
6	W11384469		Switch, Light   (Replaces: C3680314)			Immediately	$ 39.09
7	W11204869		Reservoir   (Replaces: W10538994)				$ 167.67
8	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 36.99
9	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 33.60
10	W10394423		Tower, Air		Appelez-nous	-
11	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 14.34
12	W10357649		Air Filter Cover		Appelez-nous	-
13	WPW10394053		Housing, Water Filter   (Replaces: W10394053)			Immediately	$ 157.61
14	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
15	W11683241		Assembly, Led Light Module   (Replaces: W10412708)			Immediately	$ 271.97
16	W11501035		Cover, Water Filter   (Replaces: W10300482)				$ 15.70
17	WPW10439624		Fan Assembly, Evaporator   (Replaces: W10439624)			Immediately	$ 338.17
18	WPW10451893		Evap Insulation, W/ Fan Assembly   (Replaces: W10451893)				$ 286.61
19	W11028224		Support, Evap Lh   (Replaces: W10223366)				$ 11.98
20	W10837626		Support, Evap Rh   (Replaces: W10223364)				$ 75.86
