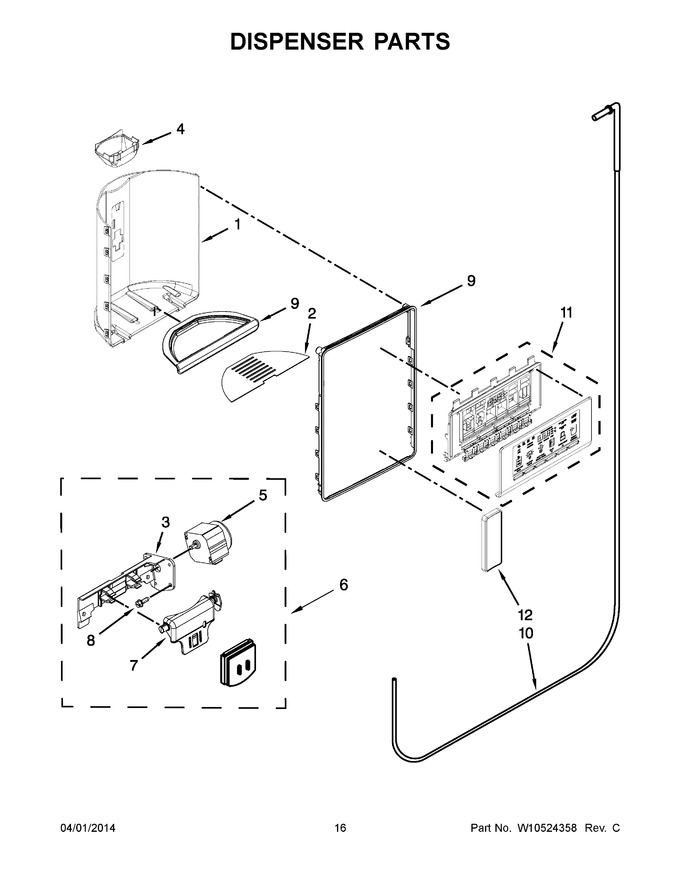

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10276255 | Grate, Drip Tray |
|
- | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 23.94 | |||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10781989 | Ice Door Assembly (Replaces: W10353570) |
|
$ 166.39 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W10276254 | Tray, Housing |
|
- | |||||
| 10 | W10341319 | Spigot |
|
$ 107.86 | |||||
| 11 | WPW10447159 | Electronic Control Assembly (Replaces: W10447159) |
|
$ 353.17 | |||||
| 12 | WPW10346924 | Pad, Ice & Water (grey) (Replaces: W10346924) |
|
Immediately | $ 289.65 |
