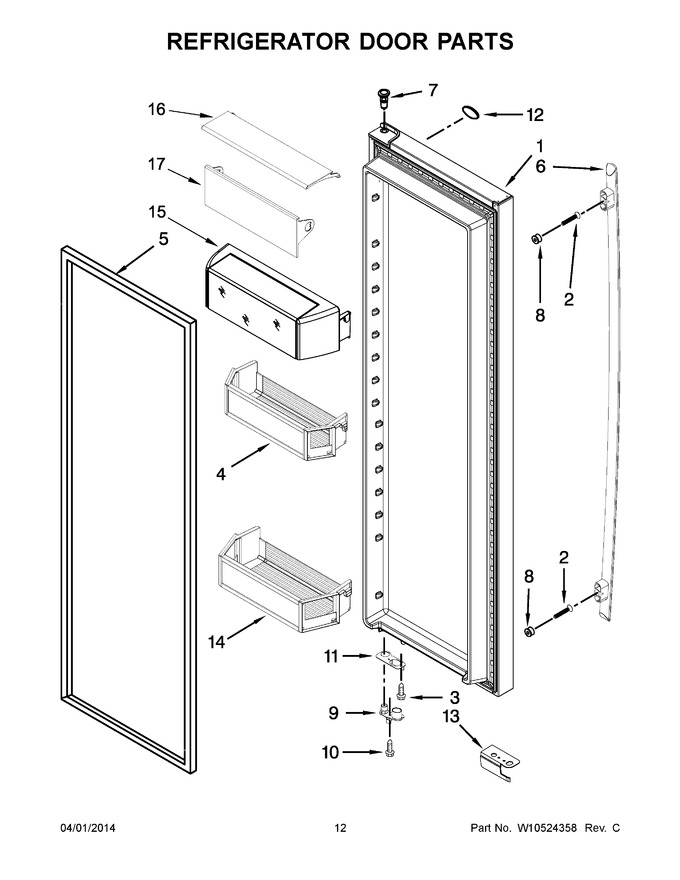

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10497146 | Refrigerator Door (includes Item 5) (stainless) |
|
- | |||||
| 2 | W10141596 | Screw |
|
$ 9.22 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | W10327565 | Door Bin, Shallow |
|
$ 95.91 | |||||
| 5 | W10355588 | Door Gasket, Magnetic (grey) (Replaces: W10249918) |
|
$ 319.21 | |||||
| 6 | WPW10183428 | Handle (stainless) (Replaces: W10183428) |
|
Immediately | $ 337.11 | ||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10170540 | Stud, Handle (Replaces: 2326259) |
|
Immediately | $ 9.66 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (grey) (Replaces: W10257203) |
|
$ 12.96 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (black) (Replaces: W10367462) |
|
$ 80.24 | |||||
| 12 | WPW10214168 | Nameplate (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 13 | W11661847 | Cover, Door Stop (grey) (Replaces: W10257218) |
|
Immediately | $ 31.71 | ||||
| 14 | W10327564 | Door Bin, Gallon |
|
$ 100.25 | |||||
| 15 | WPW10324760 | Door, Compartment Assembly (Replaces: W10316889) |
|
$ 85.60 | |||||
| 16 | WPW10316883 | Lid, Utility Bin (Replaces: W10316883) |
|
$ 67.67 | |||||
| 17 | WPW10316885 | Window, Door Compartment (Replaces: W10316885) |
|
$ 75.42 |
