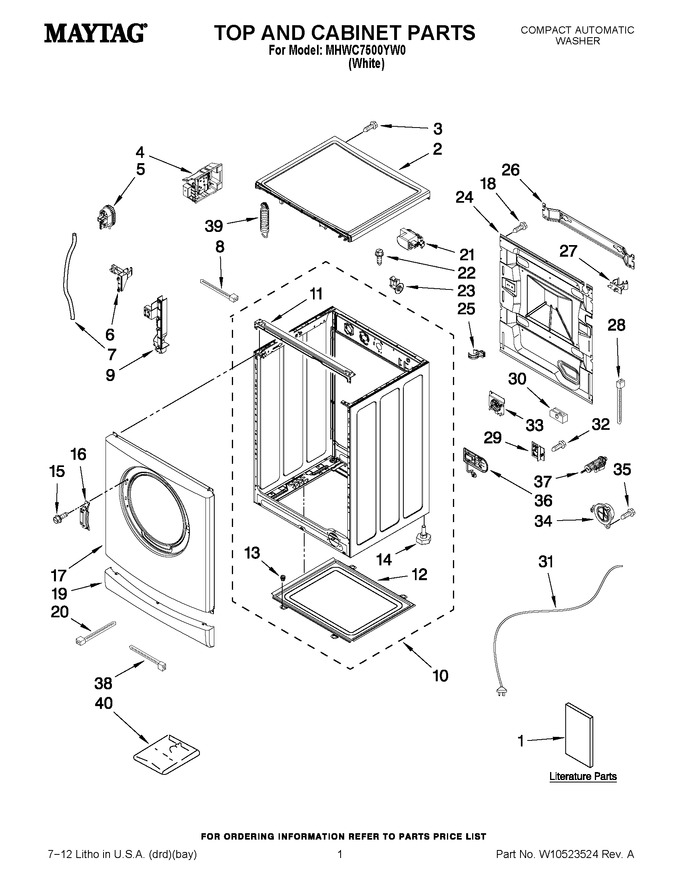

01 - Top And Cabinet Parts
02 - Control Panel Parts
03 - Door Parts
04 - Basket And Tub Parts
05 - Dispenser And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10445545 | Use & Care Guide |
|
- | |||||
| 1 | W10466788 | Quick Start Guide |
|
- | |||||
| 1 | W10451357 | Energy Guide |
|
- | |||||
| 1 | W10468733 | Tech Sheet |
|
- | |||||
| 2 | WPW10192961 | Top (Replaces: W10192961) |
|
$ 249.23 | |||||
| 3 | W10852931 | Screw (Replaces: W10193038) |
|
$ 7.19 | |||||
| 4 | W10192965 | Mcu, Assembly |
|
$ 291.01 | |||||
| 5 | W10192975 | Switch, Pressure |
|
$ 78.11 | |||||
| 6 | W10193054 | Support, Pressure Switch |
|
$ 13.58 | |||||
| 7 | W10193048 | Hose, Pressure Switch |
|
$ 24.52 | |||||
| 8 | W10193109 | Tie-wire |
|
- | |||||
| 9 | W10193055 | Retainer, Channel |
|
$ 14.04 | |||||
| 10 | W10192956 | Cabinet, Service |
|
- | |||||
| 11 | W10192985 | Brace, Control |
|
- | |||||
| 12 | W10193002 | Cover, Base |
|
- | |||||
| 13 | W10193003 | Clip, Base Cover |
|
$ 11.15 | |||||
| 14 | WPW10192970 | Foot-leveling (assembly) (Replaces: W10192970) |
|
$ 6.95 | |||||
| 15 | W10193036 | Screw |
|
- | |||||
| 16 | W11243775 | Hinge, Door (complete) (Replaces: W10193050) |
|
$ 178.11 | |||||
| 17 | WPW10192967 | Panel, Front (service) (Replaces: W10192967) |
|
$ 307.81 | |||||
| 18 | W10193107 | Screw |
|
- | |||||
| 19 | WPW10193004 | Panel, Toe (Replaces: W10193004) |
|
$ 43.79 | |||||
| 20 | W10193113 | Tie-wire |
|
- | |||||
| 21 | W10347721 | Filter-rfi (Replaces: W10192950) |
|
$ 119.75 | |||||
| 22 | W10193112 | Screw |
|
- | |||||
| 23 | W10193097 | Retainer, Clamp |
|
- | |||||
| 24 | W10192971 | Panel, Rear (service) |
|
$ 207.14 | |||||
| 25 | W10192982 | Clip, Drain Hose |
|
$ 11.04 | |||||
| 26 | W10193005 | Bracket, Transport (rear Panel) |
|
- | |||||
| 27 | W10192980 | Clip, Drain Hose (rear Panel) |
|
$ 12.01 | |||||
| 28 | W10193091 | Tie-wire |
|
- | |||||
| 29 | W10192957 | Clip, Assembly (drain Hose) |
|
$ 74.09 | |||||
| 30 | W10192992 | Strain-relief |
|
- | |||||
| 31 | W10192958 | Cord-power |
|
$ 130.87 | |||||
| 32 | W10193105 | Screw |
|
$ 33.87 | |||||
| 33 | W10193023 | Clip, Power Cord (rear Panel) |
|
- | |||||
| 34 | W10192998 | Cover, Vent |
|
$ 16.33 | |||||
| 35 | W10193108 | Screw |
|
- | |||||
| 36 | W10917818 | Cover, Transport (rear Panel) (Replaces: W10193021) |
|
$ 11.32 | |||||
| 37 | WPW10192968 | Bolt, Assembly (transport) (Replaces: W10192968) |
|
$ 61.04 | |||||
| 38 | W10193114 | Tie-wire |
|
- | |||||
| 39 | W10192955 | Spring, Suspension |
|
$ 15.10 | |||||
| 40 | W10192951 | Kit, Inlet Hose & U-bend (includes Hot & Cold Inlet Hoses & U-bend) |
|
$ 87.06 |
