01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Door Parts


04 - Basket And Tub Parts


05 - Dispenser And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

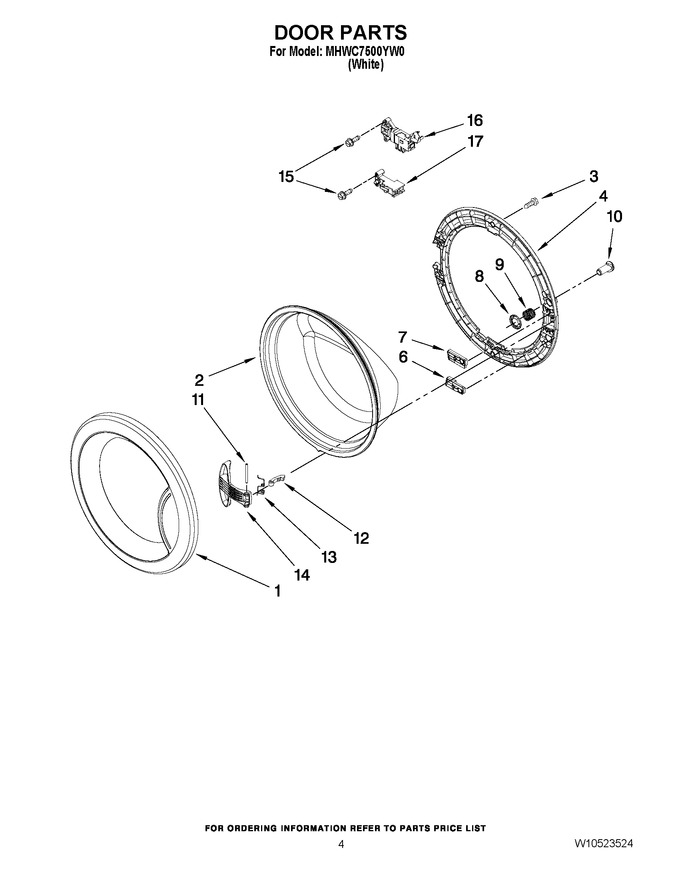

1	WPW10448505		Frame, Door Front   (Replaces: W10448505)				$ 269.83
2	WPW10193025		Glass, Door   (Replaces: W10193025)				$ 272.86
3	W10193034		Screw				$ 81.33
4	W10193022		Support, Door-back				$ 225.30
6	W10196351		Plate, Door Lock (lower)				$ 14.56
7	W10196350		Plate, Door Lock (upper)				$ 13.47
8	W10196352		Washer, Clamp (door Safety)				$ 13.81
9	W10196353		Spring, (door Safety)				$ 7.98
10	W10196349		Plug				$ 11.71
11	W10192947		Shaft, Door-lock			Immediately	$ 10.36
12	WPW10193026		Latch, Hook Door-lock   (Replaces: W10193026)				$ 12.53
13	W10851047		Spring, Door-lock   (Replaces: W10193049)				$ 8.35
14	W10523608		Handle			Immediately	$ 17.29
15	W10193035		Screw		Appelez-nous	-
16	WPW10192995		Lock, Door   (Replaces: W10192995)			Immediately	$ 176.91
17	WPW10192994		Switch, Door   (Replaces: W10192994)			Immediately	$ 46.33
