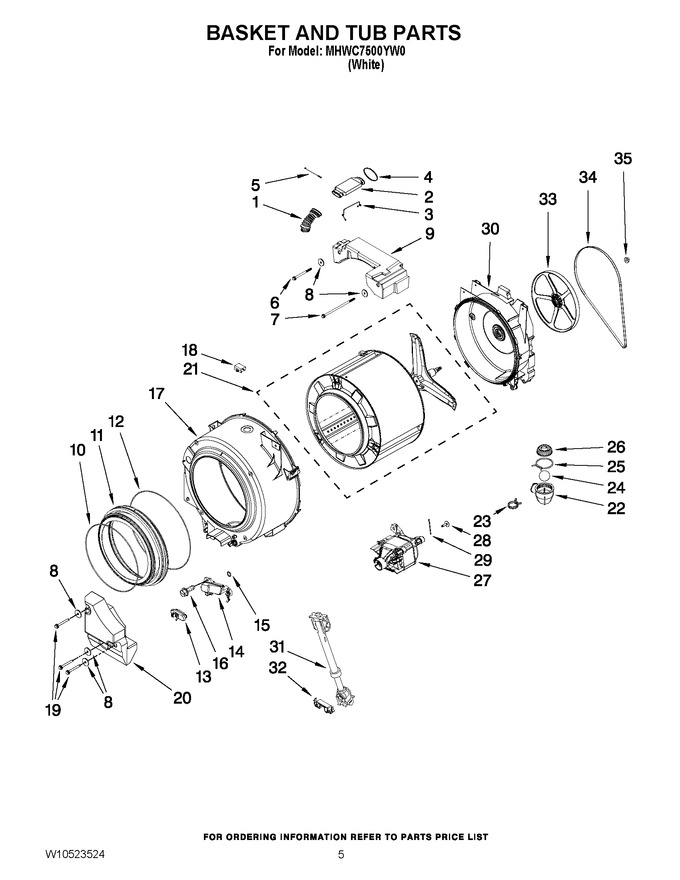

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11105131 | Hose, Vent (Replaces: W10192997) |
|
$ 88.06 | |||||
| 2 | W10192996 | Tube, Vent |
|
$ 43.83 | |||||
| 3 | W10192999 | Clamp, Tube Vent |
|
$ 17.01 | |||||
| 4 | W10193039 | Clamp, Hose |
|
$ 19.23 | |||||
| 5 | W10193000 | Spring, Tube Vent |
|
$ 23.74 | |||||
| 6 | W10193093 | Screw |
|
$ 12.51 | |||||
| 7 | W10193094 | Screw |
|
$ 21.46 | |||||
| 8 | W10193096 | Washer |
|
$ 13.98 | |||||
| 9 | WPW10192952 | Counterweight (upper) (Replaces: W10192952) |
|
$ 208.49 | |||||
| 10 | W10193044 | Clamp-wire, Bellow (panel) |
|
$ 28.06 | |||||
| 11 | W10193056 | Bellow |
|
$ 132.64 | |||||
| 12 | W10193090 | Clamp-wire, Bellow (tub) |
|
$ 52.11 | |||||
| 13 | W10192989 | Bracket, Ntc |
|
Immediately | $ 83.95 | ||||
| 14 | W10193047 | Air-trap, Assembly |
|
$ 43.75 | |||||
| 15 | W10192949 | O-ring, Air-trap |
|
$ 11.71 | |||||
| 16 | W10192945 | Screw |
|
- | |||||
| 17 | WPW10192959 | Tub-outer, Front (Replaces: W10192959) |
|
$ 212.61 | |||||
| 18 | WP8540092 | Clamp. Tub-outer (Replaces: W10193053) |
|
$ 7.59 | |||||
| 19 | W10193092 | Screw |
|
$ 12.94 | |||||
| 20 | W10192954 | Counterweight (lower) |
|
$ 221.34 | |||||
| 21 | WPW10192953 | Basket, Assembly (Replaces: W10192953) |
|
$ 508.04 | |||||
| 22 | W11199482 | Hose, Tub-to-pump (Replaces: W10192974) |
|
$ 29.61 | |||||
| 23 | W10192948 | Clamp, Hose-pump |
|
$ 12.63 | |||||
| 24 | W10193033 | Ball, Eco |
|
$ 12.63 | |||||
| 25 | W10193101 | Clamp, Hose-to-tub |
|
$ 11.15 | |||||
| 26 | W10193115 | Nut, Eco Flange |
|
$ 13.46 | |||||
| 27 | WPW10192987 | Motor (Replaces: W10192987) |
|
Immediately | $ 307.81 | ||||
| 28 | W10193095 | Screw |
|
$ 13.49 | |||||
| 29 | W10192983 | Tie-wire |
|
$ 10.91 | |||||
| 30 | WPW10192960 | Tub-outer, Rear (Replaces: W10192960) |
|
$ 338.54 | |||||
| 31 | WPW10192964 | Shock Absorber (dampner) (Replaces: W10192964) |
|
$ 135.51 | |||||
| 32 | W10193028 | Bracket, Mount (shock) |
|
$ 10.70 | |||||
| 33 | W10193058 | Pulley |
|
$ 181.79 | |||||
| 34 | WPW10192984 | Belt, Drive (Replaces: W10192984) |
|
Immediately | $ 64.52 | ||||
| 35 | W10192946 | Nut, Pulley |
|
$ 12.83 |
