SELECT A DIAGRAM

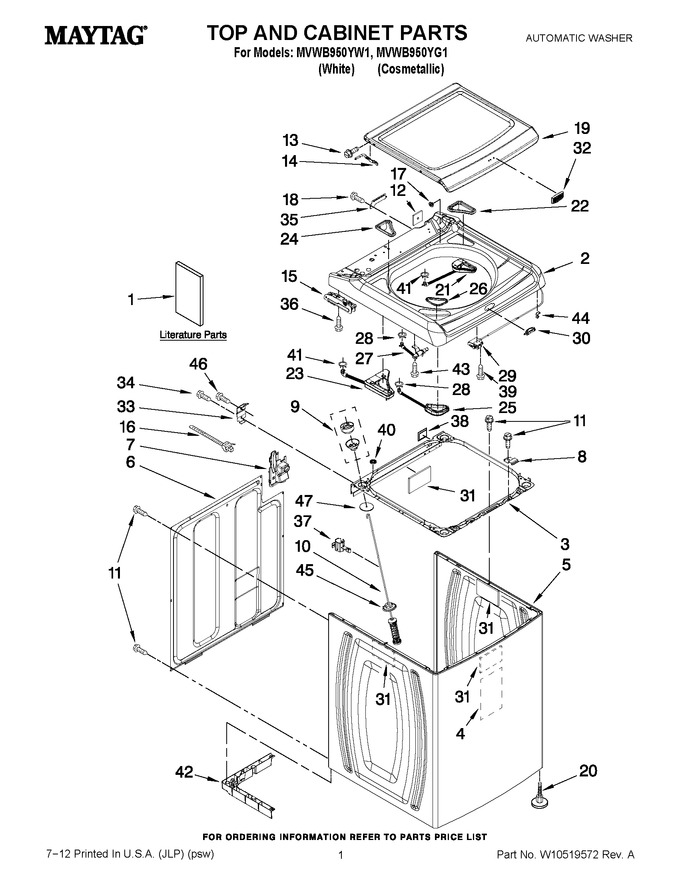

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10441032		Energy Guide		Appelez-nous	-
1	W10410358		Installation Instructions		Appelez-nous	-
1	W10399633		Use & Care Guide		Appelez-nous	-
1	W10403990		Tech Sheet		Appelez-nous	-
1	W10413079		Quick Start Guide		Appelez-nous	-
2	W10419608		Top (cosmetallic)				$ 136.81
2	W11097319		Top (white)   (Replaces: W10385297)				$ 353.12
3	W10386349		Frame Assembly, Cabinet Top (includes Items 31 & 38)		Appelez-nous	-
4	W11096159		Sound Absorber, Cabinet   (Replaces: W10414221)				$ 27.36
5	W10304158		Cabinet (cosmetallic)		Appelez-nous	-
5	8566097		Cabinet (white)		Appelez-nous	-
6	8566090		Panel, Rear				$ 131.63
7	WPW10160572		Retainer, Drain Hose Storage   (Replaces: W10160572)				$ 8.17
8	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 17.93
9	W10405423		Ball, Suspension (set Of 4)		Appelez-nous	-
10	W10440786		Damper Assembly, Tub Suspension (set Of 4-includes Items 9, 47 & 48)   (Replaces: W10368627)			Immediately	$ 85.87
11	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
12	W10161707		Seal, Foam		Appelez-nous	-
13	W10442074		Screw, Lid Hinge Mounting				$ 9.18
14	WPW10544329		Hinge Arm, Lid (left)   (Replaces: W10389421)				$ 31.25
14	WPW10544328		Hinge Arm, Lid (right)   (Replaces: W10389420)				$ 28.76
15	W10492004		Hinge, Spring Assembly (left)				$ 77.53
15	W10492005		Hinge, Spring Assembly (right)				$ 54.47
16	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.17
17	WPW10119519		Bearing, Lid Hinge   (Replaces: W10315174)				$ 7.70
18	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
19	W10842962		Lid, Glass Assembly (cosmetallic)   (Replaces: W10494878)				$ 739.06
19	W10843033		Lid, Glass Assembly (white)   (Replaces: W10495961)				$ 737.31
20	WPW10363890		Foot Assembly, Leveling   (Replaces: W10363890)				$ 13.18
21	WPW10172146		Dispenser, Fabric Softener   (Replaces: W10172146)				$ 163.28
22	W10093807		Bezel, Fabric Softener Dispenser (jade Gray)				$ 24.16
22	WPW10136371		Bezel, Fabric Softener Dispenser (white)   (Replaces: W10136371)				$ 29.52
23	WPW10187307		Dispenser, Bleach   (Replaces: W10187307)			Immediately	$ 147.52
24	W10391564		Bezel, Bleach Dispenser (jade Gray)				$ 25.40
24	WPW10131523		Bezel, Bleach Dispenser (white)   (Replaces: W10131523)				$ 8.13
25	WPW10172154		Dispenser, Detergent   (Replaces: W10172154)			Immediately	$ 163.19
26	W10093809		Bezel, Detergent Dispenser (jade Gray)				$ 24.75
26	WP8563877		Bezel, Detergent Dispenser (white)   (Replaces: 8563877)				$ 30.39
27	WPW10106990		Nozzle Assembly, Fresh Water   (Replaces: W10106990)				$ 101.97
28	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
29	WPW10619844		Lock Assembly, Lid   (Replaces: W10059230)			Immediately	$ 143.05
30	8572019		Bezel, Lid Lock (white)				$ 39.65
30	W10093806		Bezel, Lid Lock (jade Gray)				$ 22.70
31	WP8564458		Absorber, Impact   (Replaces: 8564458)			Immediately	$ 7.98
32	W10492808		Medallion   (Replaces: W10323735)				$ 56.97
33	W10432012		Hinge, Top				$ 85.20
34	WP681414		Screw   (Replaces: 681414)			Immediately	$ 7.85
35	8563941		Cover, Harness				$ 83.55
36	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
37	8543784		Bracket, Drain Hose				$ 37.38
38	8578386		Shield, Wire Harness		Appelez-nous	-
39	WP8281136		Screw   (Replaces: 8281136)				$ 6.95
40	8576476		Spacer, Rear (cabinet/top)				$ 16.73
41	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
42	W10378012		Riser, Washer (right Rear)		Appelez-nous	-
42	WPW10370996		Riser, Washer (left Front)   (Replaces: W10370996)				$ 111.63
42	W10370995		Riser, Washer (right Front)				$ 45.57
42	WPW10378013		Riser, Washer (left Rear)   (Replaces: W10378013)				$ 111.57
43	W11700520		Screw, 10-16 X 9/16   (Replaces: 3400061)				$ 13.60
44	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.32
45	WP8564017		Cup, Suspension   (Replaces: 8564017)				$ 27.42
46	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.76
47	WP8577896		Washer, Suspension Umbrella   (Replaces: 8577896)				$ 7.73
