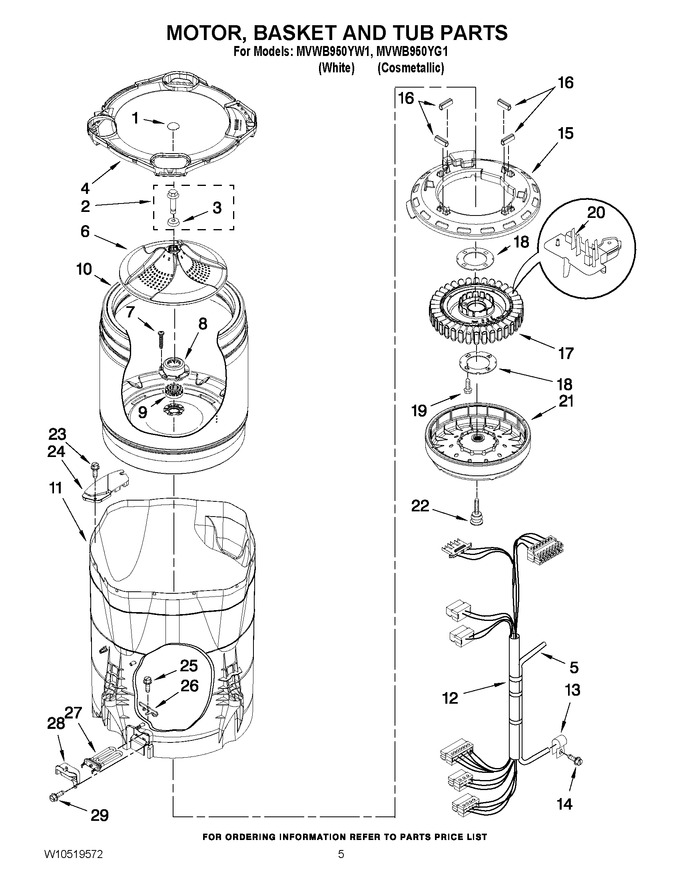

03 - Motor, Basket And Tub Parts
04 - Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10352675 | Cap, Impeller (Replaces: W10352675) |
|
$ 21.97 | |||||
| 2 | W10076270 | Screw & Washer Assembly |
|
$ 5.83 | |||||
| 3 | WPW10076260 | Washer (Replaces: W10076260) |
|
$ 11.88 | |||||
| 4 | WPW10362224 | Tub Ring (Replaces: W10362224) |
|
$ 217.97 | |||||
| 5 | WP353244 | Hose Pressure Switch (Replaces: W10297449) |
|
Immediately | $ 59.93 | ||||
| 6 | WPW10357576 | Impeller (washplate) (Replaces: W10357576) |
|
Immediately | $ 338.07 | ||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 7.55 | ||||
| 8 | W10820039 | Hub, Basket-driven (includes Item 9) (Replaces: W10118114) |
|
Immediately | $ 36.28 | ||||
| 9 | W10820039 | Hub, Basket-driver (includes Item 8) (Replaces: 8545953) |
|
Immediately | $ 36.28 | ||||
| 10 | W10356924 | Basket Assembly(includes Items 7, 8, & 9) |
|
- | |||||
| 11 | W10381077 | Tub & Drive Shaft Assembly |
|
$ 749.95 | |||||
| 12 | W10297446 | Harness, Lower (includes Item 5) |
|
$ 175.12 | |||||
| 13 | W10005430 | Clamp, Pressure Hose Retainer |
|
Immediately | $ 9.53 | ||||
| 14 | 8533957 | Screw |
|
$ 12.60 | |||||
| 15 | W10137698 | Shield, Drive Motor (includes Item 16) |
|
$ 37.16 | |||||
| 16 | 8565172 | Tube, Buffer (set Of 4) |
|
- | |||||
| 17 | WPW10419333 | Stator, Motor (includes Item 18) (Replaces: W10419333) |
|
Immediately | $ 349.42 | ||||
| 18 | WP8557836 | Plate, Stator (set Of 2) (Replaces: 8557836) |
|
Immediately | $ 110.55 | ||||
| 19 | 8534042 | Screw |
|
$ 5.65 | |||||
| 20 | WPW10178988 | Rps Assembly (Replaces: W10178988) |
|
Immediately | $ 49.28 | ||||
| 21 | 280146 | Rotor, Main Drive Motor (includes Item 22) (Replaces: 8565177) |
|
Immediately | $ 343.68 | ||||
| 22 | N/P | Bolt, Rotor Assembly Non-serviceable (supplied W/rotor) |
|
- | |||||
| 23 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 24 | W10222008 | Filter, Dual Pump Hood |
|
$ 61.51 | |||||
| 25 | W10119266 | Screw |
|
$ 12.71 | |||||
| 26 | W10134571 | Clip, Tub Heater |
|
$ 52.20 | |||||
| 27 | W11041462 | Heater, Tub (Replaces: W10325894) |
|
$ 84.89 | |||||
| 28 | WPW10297450 | Cover, Tub Heater (Replaces: W10297450) |
|
$ 37.26 | |||||
| 29 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 |
