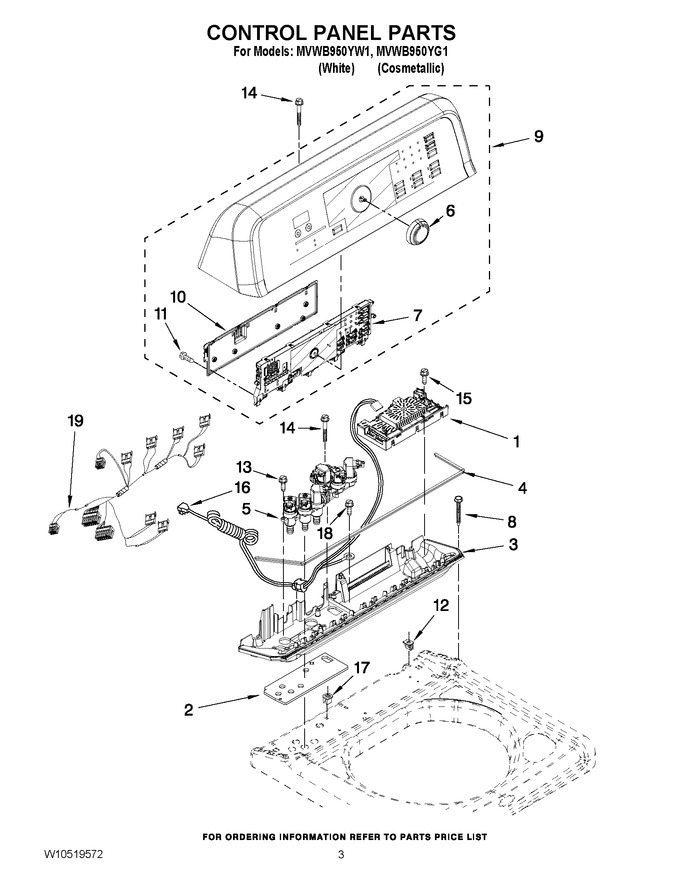

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10447143 | Control Unit Assembly, Machine & Motor |
|
- | |||||
| 2 | W10141695 | Gasket, Valve Tray |
|
$ 36.82 | |||||
| 3 | WPW10356745 | Tray Assembly, Console (includes Items 2 & 4) (white) (Replaces: W10356745) |
|
$ 182.81 | |||||
| 3 | W10356746 | Tray Assembly, Console (includes Items 2 & 4) (grey) |
|
- | |||||
| 4 | W10141693 | Gasket, Console/tray |
|
- | |||||
| 5 | W10853723 | Valve, Log (Replaces: W10342320) |
|
Immediately | $ 121.66 | ||||
| 6 | WPW10338554 | Knob, Control (Replaces: W10338554) |
|
$ 64.58 | |||||
| 7 | W10426809 | User Interface |
|
$ 238.99 | |||||
| 8 | W10004990 | Screw |
|
- | |||||
| 9 | W10396165 | Console (cosmetallic) |
|
$ 336.70 | |||||
| 9 | W10396164 | Console (white) |
|
$ 339.97 | |||||
| 10 | W10051124 | Cover, Rear-user Interface |
|
$ 263.67 | |||||
| 11 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | W10022060 | Nut, Push-in |
|
- | |||||
| 13 | WPW10052600 | Screw (Replaces: W10052600) |
|
$ 7.30 | |||||
| 14 | 8565324 | Screw |
|
$ 14.05 | |||||
| 15 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 7.30 | |||||
| 16 | W10761002 | Cord, Power (Replaces: W10420367) |
|
$ 148.13 | |||||
| 17 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 18 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 19 | WPW10404419 | Upper Harness (Replaces: W10404419) |
|
$ 77.97 |
