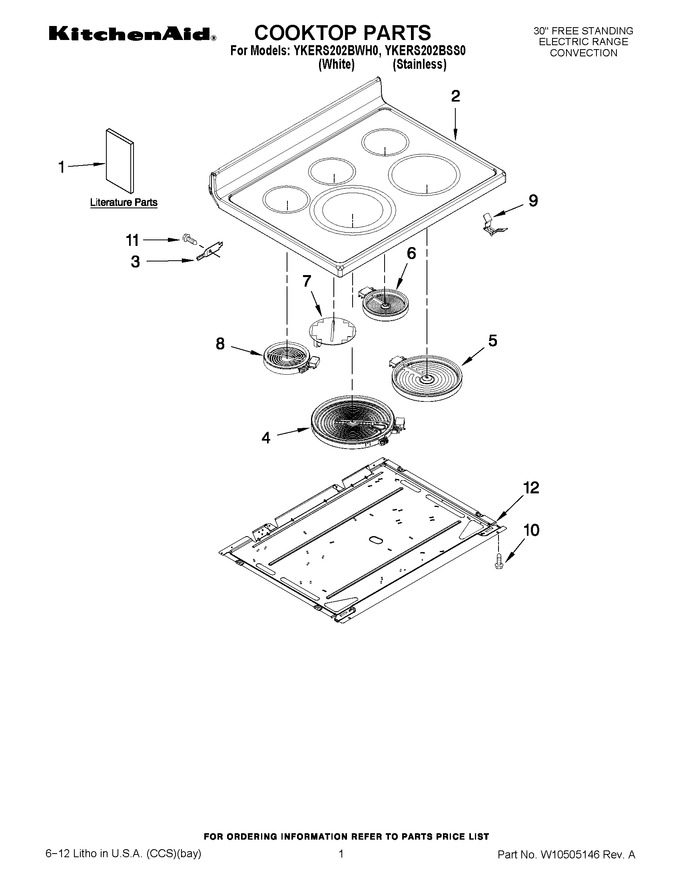

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392939 | Use & Care Guide |
|
- | |||||
| 1 | W10478474 | Tech Sheet (english) |
|
- | |||||
| 1 | W10478478 | Tech Sheet (french) |
|
- | |||||
| 1 | W10403812 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1 | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 2 | W10524411 | Cooktop (white) (Replaces: W10380674) |
|
$ 648.46 | |||||
| 2 | W10380675 | Cooktop (black) |
|
- | |||||
| 3 | WP3195060 | Pin, Hinge (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 4 | WPW10189281 | Element (lf), 3000w Dual (Replaces: W10189281) |
|
Immediately | $ 377.54 | ||||
| 5 | W11517959 | Element (rf), 3000/1400w (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | W11171119 | Element (rr) 1200w (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11047668 | Element (cr), Warm Zone (Replaces: W10388247) |
|
$ 132.95 | |||||
| 8 | WPW10342780 | Element (lr), 1300w Dual (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 11 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 12 | W11728329 | Pan, Radiant (Replaces: W10106409) |
|
Immediately | $ 143.49 |
