SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

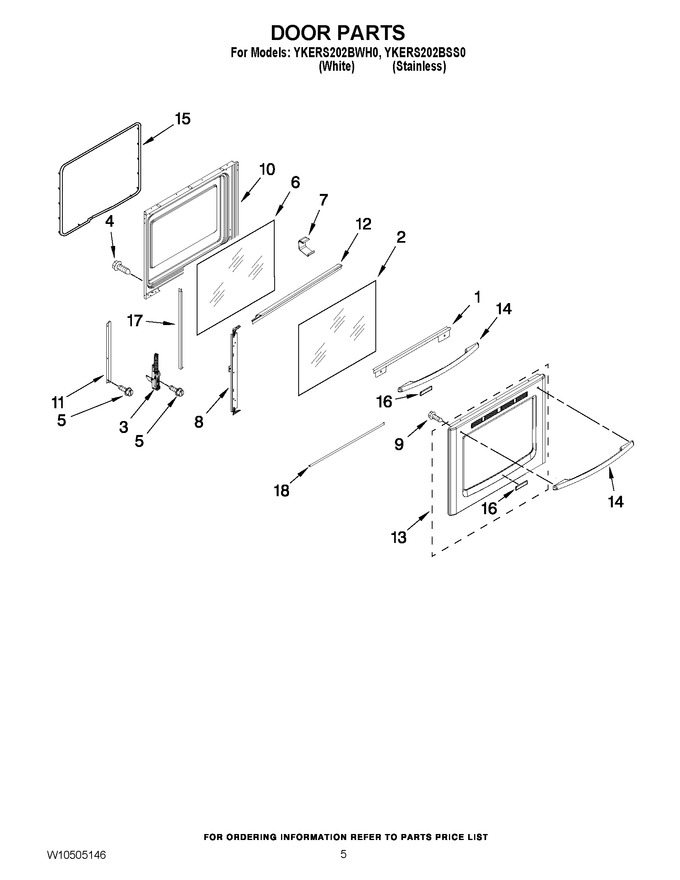

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10339814		Trim, Vent (ss)				$ 139.33
1	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 125.35
2	WPW10495962		Glass, Outer Door (white)   (Replaces: W10495962)				$ 402.77
2	WPW10495964		Glass, Outer Door (ss)   (Replaces: W10495964)				$ 372.84
3	WPW10440013		Hinge, Active Door (ss)   (Replaces: W10388635)			Immediately	$ 63.80
3	WPW10440013		Hinge, Active Door (white)   (Replaces: W10440013)			Immediately	$ 63.80
4	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
7	W10137382		Clip, Glass			Immediately	$ 48.42
8	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
9	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
10	WPW10297318		Lining, Door   (Replaces: W10297318)			Immediately	$ 331.51
11	W10294852		Bracket, Glass				$ 144.19
12	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
13	WPW10490829		Skin, Door (ss)   (Replaces: W10490829)				$ 379.64
14	WPW10289076		Handle, Door (ss)   (Replaces: W10289076)				$ 334.61
14	W10284917		Handle, Door (white)				$ 273.77
15	W11562931		Gasket, Door   (Replaces: W10162385)			Immediately	$ 87.76
16	WPW10243391		Nameplate (ss)   (Replaces: W10243391)				$ 58.31
16	WPW10243393		Nameplate (white)   (Replaces: W10243393)				$ 69.98
17	W10334003		Trim, Side			Immediately	$ 84.58
18	WPW10333990		Trim, Lower   (Replaces: W10333990)			Immediately	$ 51.90

    View Diagram in Separate Window       Print Part List
